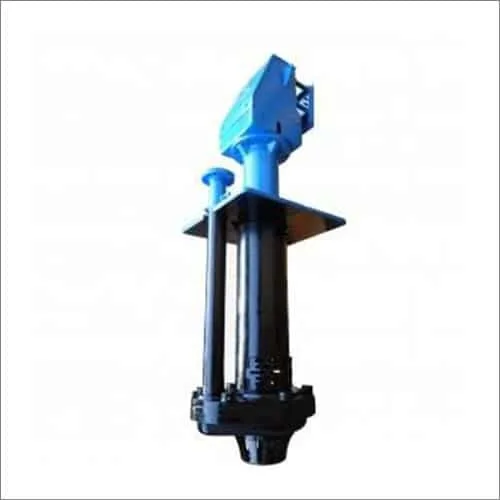

Rubber Lined Vertical Slurry Pump SVR/65Q 1
Rubber Lined Vertical Slurry Pump SVR/65Q 1

Rubber Lined Vertical Slurry Pump SVR/65Q

Brand: CNSME
Model Number: SVR/65Q
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set
Delivery Time: 10-14 days
Payment Terms: T/T 100% deposit
Packaging Details: Wooden crate

    oops...!

    no product data.

    Go to homepage

    Pump Model: SVR/65Q

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3The SVR heavy duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty catilever design makes the SVR sump pump ideally suited for heavy continous handling of corrosive liquids and slurries whilst submerged in sumps or pits. The rugged SVR heavy duty sump pumps are available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in:

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3And almost every other tank, pit or hole-in-the-ground slurry handling situation. The SVR design with elastomer covered components makes it ideal for: Corrosive slurries; Large Particle sizes; High density slurries; Heavy duties demanding cantilever shafts.

    40PV

    Specifications

    Pump
    Model
    Allowable
    Max. Power
    (kw)
    Material Clear Water Performance Impeller
    Capacity Q Head
    H(m)
    Speed
    n(r/min)
    Max.Eff.
    η%
    Length
    Shaft (mm)
    No. of
    Vanes
    Vane Dia.
    (mm)
    Impeller m3/h
    SVR/40P 15 Rubber
    (R55)
    19.44-43.2 4.5-28.5 1000-2200 40 900 5 195
    SVR/65Q 30 23.4-111 5-29.5 700-1500 50 1200 290
    SVR/100R 75 54-289 5-35 500-1200 56 1500 390
    SVR/150S 110 72-504 10-35 500-1000 56 1800 480



    Material Construction

    Description Standard Material Optional Material
    Impeller Natural Rubber R55
    Casing Natural Rubber R55
    Back Liner Natural Rubber R55
    Shaft Carbon Steel SUS304, SUS316(L)
    Discharge Pipe 20# Mild Steel SUS304, SUS316(L)
    Column 20# Mild Steel SUS304, SUS316(L)

    CONSTRUCTION OFSP(R) Series Vertical Slurry Pumps

    sp 拷贝 (2)

    Dimension Drawing

    Dimension Drawing
    Specifications
    12-10ST-AH-O00--
    3 (52)

    Structure Characteristics

    Vertical cantilever type, single pump casing structure: without any shaft seal, immersed in the liquid work, suitable for conveying abrasive, coarse particles, high concentration slurry.  Wear resistant and corrosion resistant materials: the pump casing and impeller are made of wear-resistant and corrosion resistant materials, which can run for a long time under the harsh working environment.

    三维图 拷贝 2
    三维图 拷贝 2
    外形图 拷贝 2
    外形图 拷贝 2
    pump used in slovakia (1) 拷贝
    pump used in slovakia (1) 拷贝
    pump used in slovakia 拷贝
    pump used in slovakia 拷贝

    Application

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Mining: Pumping slurry, improving the efficiency of ore processing

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Metallurgy: Handling high concentration slurry, guaranteeing production continuity.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Coal: Conveying coal slurry in coal washing process, improving coal washing efficiency.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Chemical Industry: Conveying corrosive, coarse particles, high concentration slurry, to ensure production safety.
