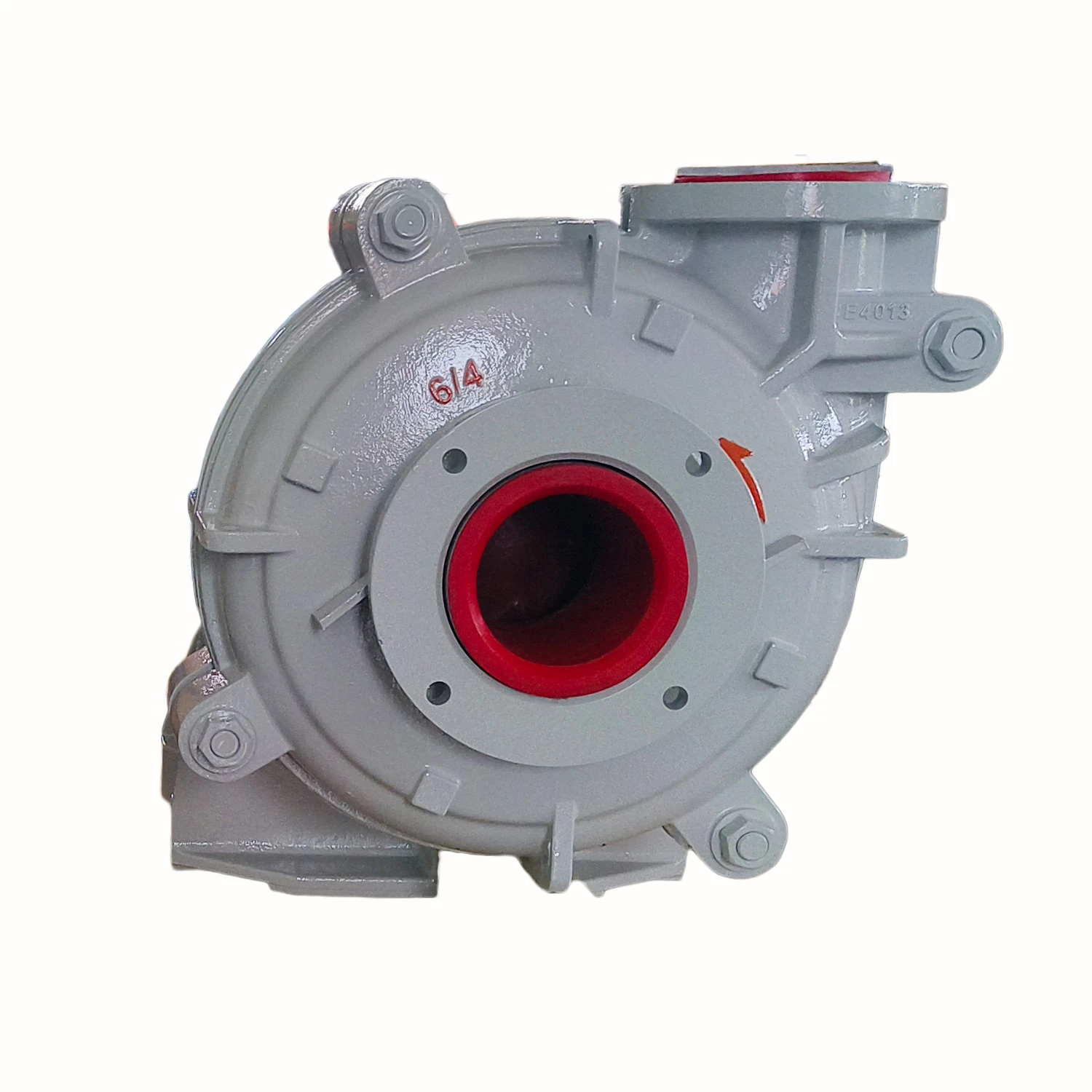

6/4 Heavy-duty Centrifugal Slurry Pump

Model: 6/4 AH
Rated power: 60 kW
Impeller number: E4147
Impeller type: Closed (Close), metal material
Impeller diameter: 365 mm
Number of blades: 5 blades
Maximum allowable particle size: 51 mm
Maximum Speed: 1800 rpm
The 6/4 AH slurry pump is a heavy-duty slurry conveying device designed for harsh operating conditions, widely used in industries such as mining, coal, and metallurgy. When selecting a model, consider parameters such as flow rate, head, and medium characteristics, and ensure proper maintenance to extend service life.

Inquiry

Write a Review

Product Advantages

Wear and Corrosion Resistance

Constructed with high chrome alloy or rubber lining materials, suitable for highly abrasive and moderately corrosive applications.

Excellent Solids Handling Capability

Optimized hydraulic design allows smooth handling of high-concentration slurries and large particles with stable operation.

Easy Maintenance

Front-disassembly design makes impeller and liner replacement convenient, reducing downtime and maintenance costs.

High Efficiency

Advanced hydraulic design maintains high efficiency even under heavy slurry conditions, offering significant energy savings.

Strong Interchangeability

AH series parts are highly interchangeable, lowering maintenance costs and simplifying inventory management.

PARAMETERS

Model: 6/4 AH Rated power: 60 KW Impeller number: E4147 Impeller type: Closed, metal material Impeller diameter: 365 mm Number of blades: 5 Maximum allowable particle size: 51 mm Maximum speed: 1800 rpm

RECOMMENDATIONS

Selection: Select the appropriate operating point based on actual working conditions (such as flow rate, head, and medium characteristics), and prioritise the more efficient range (such as near the rated flow rate).

Specifications

AH Series Metal Slurry Pump Specifications
Pump Model	S×D (inch)	Allowable Max. Power (kw)	Material	Clear Water Performance						Impeller
			Material	Capacity Q		Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)	Weight (kg)
			Impeller	m3/h	l/s	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)	Weight (kg)
1.5/1B-AH	1.5×1	15	Metal (A05)	12.6-28.8	3.5-8	6-68	1200-3800	40	2-4	5	152	91
2/1.5B-AH	2×1.5	15		32.4-72	9-20	6-58	1200-3200	45	3.5-8		184	118
3/2C-AH	3×2	30		39.6-86.4	11-24	12-64	1300-2700	55	4-6		214	191
4/3C-AH	4×3	30		86.4-198	24-55	9-52	1000-2200	71	4-6		245	263
4/3D-AH	4×3	60		86.4-198	24-55	9-52	1000-2200	71	4-6		245	363
6/4D-AH	6×4	60		162-360	45-100	12-56	800-1550	65	5-8		365	626
6/4E-AH	6×4	120		162-360	45-100	12-56	800-1550	65	5-8		365	728
8/6E/AH	8×6	120		360-828	100-230	10-61	500-1140	72	2-9		510	1473
8/6F-AH	8×6	260									510	1496
8/6R-AH	8×6	300									510	1655
10/8F-AH	10×8	260		612-1368	170-380	11-61	400-850	71	4-10		686	3193
10/8ST-AH	10×8	560		612-1368	170-380	11-61	400-850	71	4-10		686	3750
12/10F-AH	12×10	260		936-1980	260-550	7-68	300-800	82	6		762	3760
12/10ST-AH	12×10	560		936-1980	260-550	7-68	300-800	82	6		762	4318
14/12ST-AH	14×12	560		1260-2772	350-770	13-63	300-600	77	3-10		965	6409
16/14TU-AH	16×14	1200		1368-3060	380-850	11-63	250-550	79	4-10		1067	10000
