8/6E-AH Slurry Pump Bearing Assembly EAM005M | Heavy Duty Warman Interchangeable Spare Parts

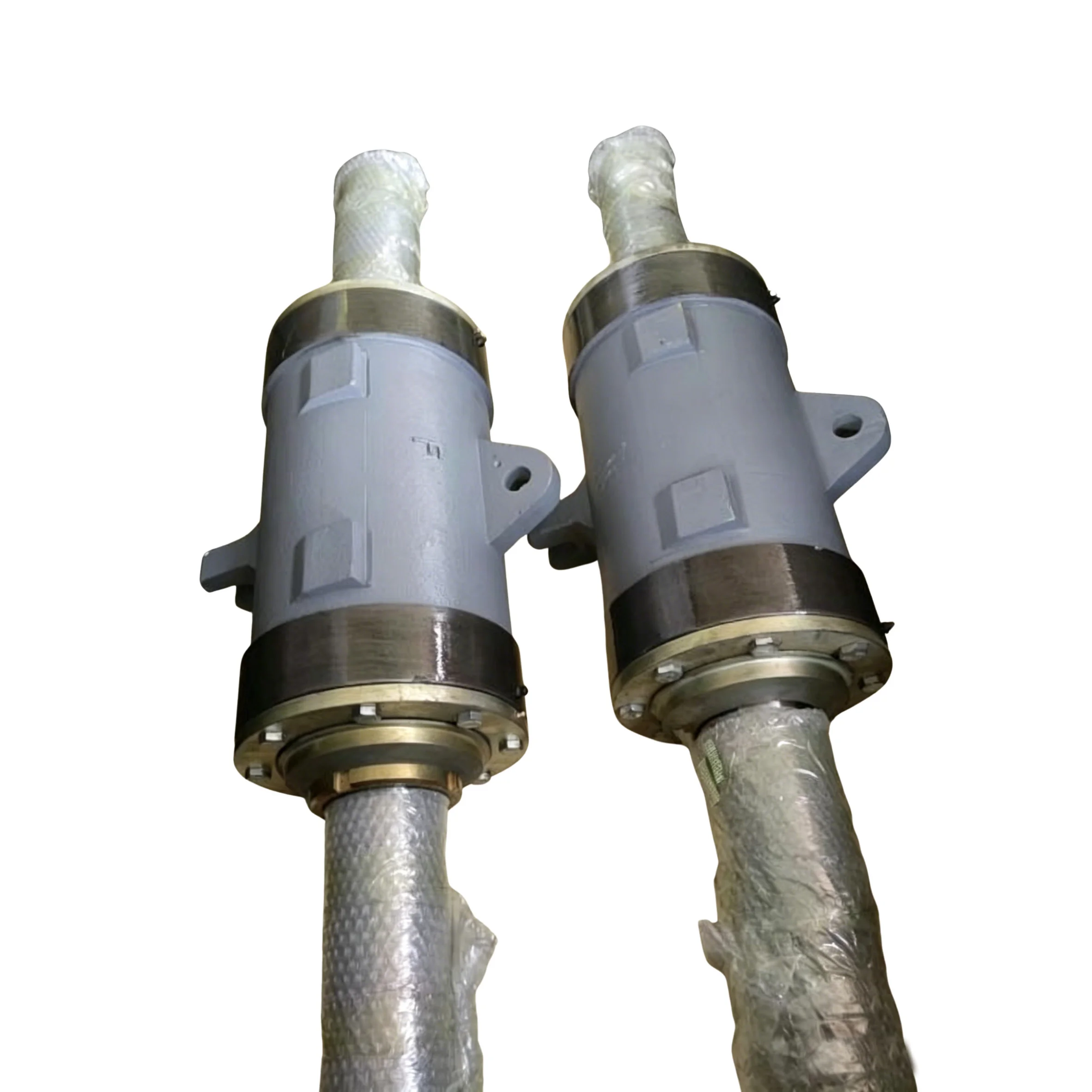

The EAM005M Bearing Assembly is a critical component of the 8/6E-AH slurry pump, responsible for supporting the rotating shaft and maintaining alignment under heavy radial and axial loads.

It is manufactured using high-strength alloy steel and precision-machined bearing housing to ensure long service life and consistent performance in harsh slurry environments.

The EAM005M bearing assembly includes:

Bearing Housing
Shaft
Bearings
Labyrinth & Labyrinth Locknut
Oil Seal / Bearing Seal
End Cover & End Cover Ring (Shim)
Grease Retainer
Piston Ring
Gland Bolts
Grease Cap & Grease Nipples

Inquiry

Write a Review

The bearing assembly of a slurry pump usually consists of the following components

Slurry Pump Bearing Assembly Labyrinth : used to seal both ends of the bearing to prevent grease leakage and debris from entering.

Slurry Pump Bearing Assembly Grease cup: used to inject grease.

Slurry Pump Bearing Assembly Grease retainer: blocks grease and discharges excess waste oil.

Slurry Pump Bearing Assembly Bearing Housing: supports the shaft and bearing to ensure stable rotation of the shaft.

Slurry Pump Bearing Assembly Bearing: bears radial and axial forces to achieve effective rotation.

Slurry Pump Bearing Assembly End cover: fixes the position of the shaft and adjusts the assembly clearance.

Shaft: connects the impeller and the coupling to transmit power.

Piston ring: cooperates with the labyrinth to play a sealing role.

Slurry Pump Bearing Assembly Labyrinth Locknut: fixes the labyrinth and bearing at the drive end.

End Cover Locknut: used to fasten the end cover.

Bearing Assembly of Pump Model

Bearing Assembly	SP Vertical Pumps
PV4005M	40PV/SP
QV65005M	65QV/SP
RV10005M	100RV/SP
SV15005M	150SV/SP
SV20005M	200SV/SP
SV25005M	250TV/SP
TV30005M	300TV/SP
Bearing Assembly	G Gravel Pumps
DAM005M	6/4D-G
E005M	8/6E-G
F005M	10/8F-G
S005-1M	10/8S-G
FG005M	12/10F-G
GG005M	12/10G-G
G005M	14/12G-G
G005-1M	18/16G-G
HG005M	18/16H-G
T005-1M	18/16T-G
FG005-1M	10/8F-GH
FFAM005-1M	10/8FF-GH
S005-3M	10/8S-GH
G005M	12/10G-GH
T005-1M	12/10T-GH
HG005M	16/14H-GH
HG005M	18/16H-GH
D005M	4/3D-AH
Bearing Assembly	AH Gravel Pumps
DD005M	4/3DD-AH
DAM005M	6/4D-AH
DDAM005M	6/4DD-AH
E005M	6/4E-AH
EE005M	6/4EE-AH
EAM005M	8/6E-AH
EEAM005M	8/6EE-AH
F005M	8/6F-AH
FF005M	8/6FF-AH
R005M	8/6R-AH
FAM005M	10/8F-AH, 12/10F-AH, 14/12F-AH
FFAM005M	10/8FF-AH, 12/10FF-AH, 14/12FF-AH
SH005M	10/8ST-AH, 12/10ST-AH, 14/12ST-AH
GAM005M	16/14G-AH
GGAM005M	16/14GG-AH
TH005M	16/14TU-AH
HG005M	16/14H-AH
GAM005-1M	20/18G-AH
GGAM005M	20/18GG-AH
T005M	20/18TU-AH
U005M	20/18U-AH
Bearing Assembly	L Slurry Pumps
ASC005M	20A-L
BSC005M	50B-L
CAM005M	75C-L
DSC005M	100D-L
ESC005M	150E-L
EAM005M	250E-L
F005M	250F-L
R005-1M	250R-L
FFRS005M	300FF-L
S005M	300S-L, 350S-L, 400ST-L, 450ST-L, 500ST-L
FF005-1M	350FF-L
G005-1M	400G-L, 450G-L
GG005-2M	450GG-L
T005M	500TU-L, 550TU-L, 650TU-L
HT005M	550H-L
U005M	650U-L
