Volute Liner for Warman 1.5/1B-AH Slurry Pump

Part No.: B1110 | Material: A05 High-Chrome White Iron

1. Product Overview

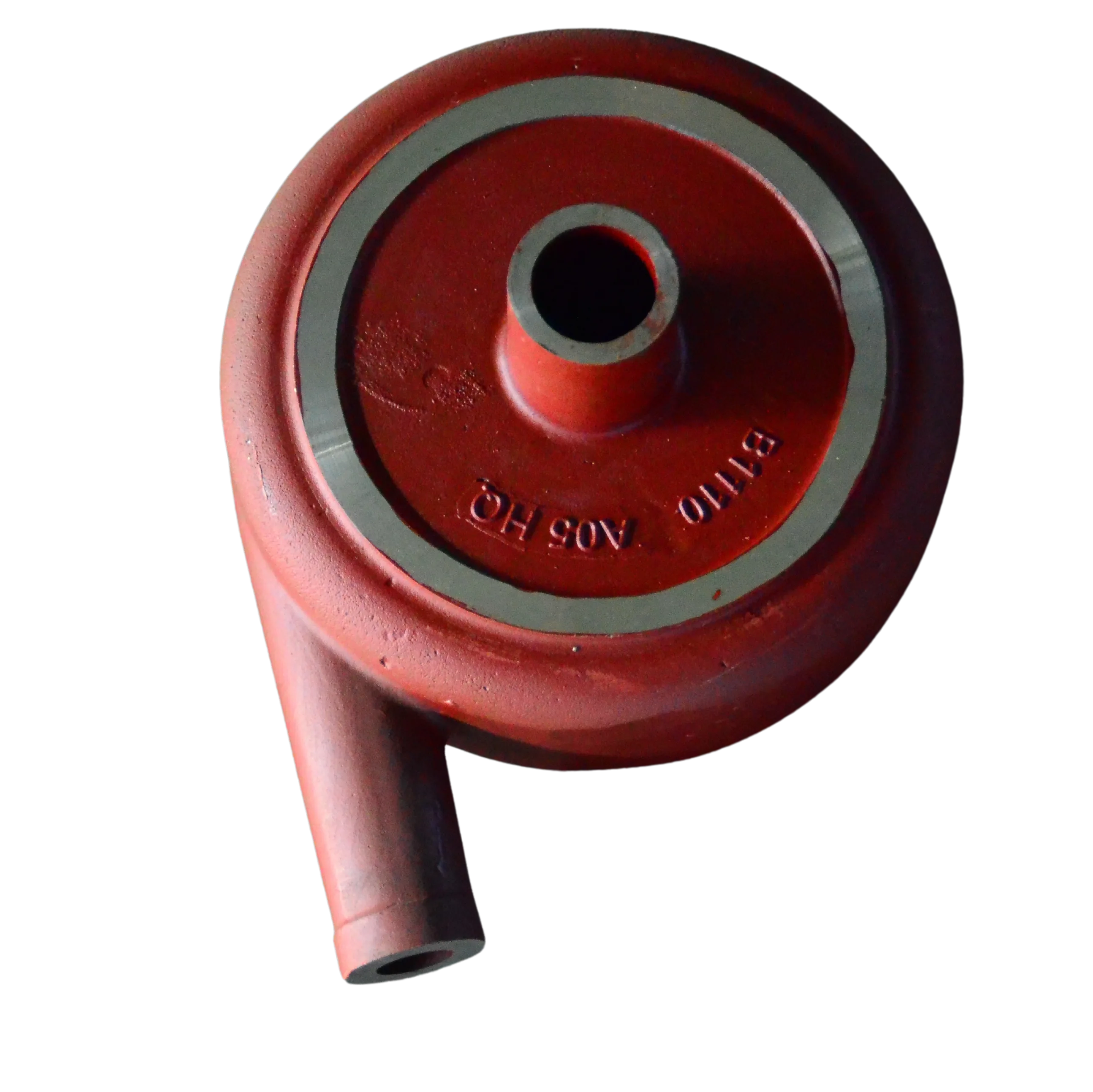

The Volute Liner (Part Code: B1110) is a critical wear component designed for the Warman 1.5/1B-AH slurry pump, fully compatible with its CNSME equivalent model SH/25B. Manufactured from A05 high-chrome white iron, this liner ensures extended service life in highly abrasive slurry applications, such as mining, mineral processing, and tailings handling.

2. Key Features
Superior Wear Resistance: A05 material provides exceptional abrasion resistance, ideal for coarse and erosive slurries.

Precision Engineering: Exact dimensional match to OEM Warman 1.5/1B-AH specifications (interchangeable with SH/25B).

Optimized Hydraulics: Smooth internal surface reduces turbulence and improves pump efficiency.

Internal Reference: Supplier batch code B1110 A05 HQ for traceability.

3.Maintenance Notes
Inspect liner thickness periodically; replace if wear exceeds 20% of original thickness.

Use genuine CNSME gaskets (e.g., Code 124: Volute Liner Seal) for leak-proof assembly.

Note: For CAD drawings or material test reports, contact CNSME Technical Support.
