This paper mainly explains the type, structure, and model of the ZJ series slurry pump in the slurry pump.
There are two types of ZJ slurry pumps. One is the ZJ type, which is a horizontal shaft single-stage single-suction centrifugal slurry pump; The other is the ZJL type, which is a vertical shaft single-stage single-suction centrifugal slurry pump.
Ⅰ. Structural characteristics and model of ZJ slurry pumps
1. Structural characteristics of ZJ slurry pumps
1) Pump End
The pump head of the ZJ slurry pump includes a pump shell, impeller, and shaft seal device. The pump head is connected with the base with bolts. As required, the water outlet position of the pump can be installed and used by rotating eight different angles at an interval of 45 °.
The pump shell of the ZJ slurry pump is a double-layer shell structure. The outer layer is metal pump casing (front pump casing and rear pump casing), and its material is usually cast iron or ductile iron; the inner layer is made of high chromium alloy cast iron (including volute, throat bush, and frame plate liner insert).
The impeller is composed of a front cover plate, rear cover plate, blade, and back blade. The blades are twisted, usually in the quantity of 3-6. The back blades are distributed on the outside of the front cover plate and the rear cover plate, usually in the quantity of 8. The impeller is made of high chromium alloy cast iron, and the impeller is connected with the shaft by a thread.
The shaft seal device has three types: expeller + packing combined seal, packing seal, and mechanical seal.

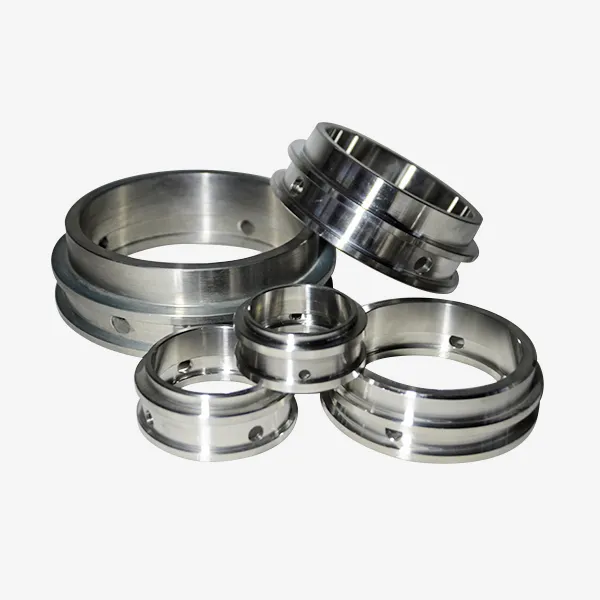

The combined seal type of expeller and packing consists of the stuffing box, expeller, lantern ring, packing, gland, and shaft sleeve.
The packing seal type is composed of the stuffing box, shaft spacer, lantern ring, packing, gland, and shaft sleeve.
The mechanical seal type consists of a stuffing box, shaft spacer, mechanical seal, gland, and shaft sleeve.
2) Pump Base
The pump base has two structures: horizontal split type and barrel type.
The split base is lubricated with thin oil, which is mainly composed of the base body, base cover, shaft, bearing box, bearing, bearing gland, retaining sleeve, nut, oil seal, water retaining plate, release collar, and other parts, as shown in Figure 1. 150ZJ and above pumps are also equipped with water cooling device.
The cylindrical base is lubricated with grease, which is mainly composed of the base body, bearing body, shaft, bearing, bearing top sleeve, bearing gland, oil seal, oil cup, water retaining plate, release collar, and other parts.
The barrel base is only applicable to pump types with small power of 200ZJ and below. At present, there are only three specifications: T200ZJ-A70, T200ZJ-A60, and T150ZJ-A60.
See Figure 1 for the specific structure of the ZJ pump.


Ⅱ. Structural characteristics and model of ZJL slurry pumps
1. Structural characteristics of ZJL slurry pumps
ZJL slurry pump is mainly composed of impeller, volute, rear guard plate, shaft sleeve, support, support plate, shaft, bearing, bearing body and other parts.
The impeller, volute, and rear guard plate are made of high chromium alloy cast iron. The impeller and shaft are connected by threads, and the volute, support and bearing body are connected by bolts. The pump shaft and motor can be driven directly by coupling or belt.
The bearing of the ZJL pump is lubricated with grease. This series of pumps are nonshaft seal pumps.
See Figure 2 for the specific structure of the ZJL pump.

Are you in the market for a vertical slurry pump but unsure where to start? Look no further! In this comprehensive guide, we have compiled a detailed list of the top vertical slurry pump manufacturers that are dominating the industry. Whether you prioritize reliability, performance, or innovation, these manufacturers have it all. Stay tuned as we explore the best options available in the market to help you make an informed decision for your pumping needs.
to Vertical Slurry Pumps:
Vertical slurry pumps play a crucial role in a wide range of industries, including mining, construction, wastewater treatment, and chemical processing. These pumps are specifically designed to handle abrasive and corrosive slurries, making them ideal for applications where traditional pumps would quickly wear out.
When it comes to choosing a vertical slurry pump manufacturer, it is essential to select a reputable and reliable company that offers high-quality products and exceptional customer service. In this article, we will take a closer look at some of the top vertical slurry pump manufacturers in the market today.
Warman:
Warman, with a history spanning over 80 years, is one of the leading manufacturers of vertical slurry pumps. The company has built a solid reputation for producing durable and efficient pumps that can handle the toughest slurry applications. Warman pumps are known for their robust construction, reliable performance, and long service life.
Metso:
Another prominent player in the vertical slurry pump market is Metso. This global company offers a diverse range of slurry pumps designed for various industries and applications. Metso pumps are recognized for their innovative design features, such as adjustable impeller clearance and modular design for easy maintenance.
Weir Minerals:
Weir Minerals specializes in designing and manufacturing high-performance pumps for the mining and mineral processing industries. Their vertical slurry pumps are engineered to deliver high efficiency and low maintenance, making them a preferred choice among industry professionals.
Other Top Manufacturers:
In addition to Warman, Metso, and Weir Minerals, there are several other reputable companies that produce quality vertical slurry pumps. Some of these include KSB, Goulds, and Flowserve. Each of these manufacturers offers unique features and benefits, so it is important to research and compare different options before making a purchase.
Key Factors to Consider When Choosing a Vertical Slurry Pump Manufacturer:
When selecting a vertical slurry pump manufacturer, it is crucial to consider factors such as pump size, flow rate, head pressure, and material of construction. Additionally, it is essential to evaluate the manufacturer's reputation, warranty coverage, and customer support services to ensure a smooth experience with their products.
In conclusion, vertical slurry pumps are indispensable tools for many industries, and choosing the right manufacturer is paramount to ensuring reliable and efficient pump performance. By considering factors like pump design, features, and manufacturer reputation, you can select a pump that meets your specific needs and requirements. Explore the products offered by top manufacturers such as Warman, Metso, and Weir Minerals, as well as other reputable companies in the market.
Overview of the Top Vertical Slurry Pump Manufacturers in the Market:
When it comes to selecting the right vertical slurry pump for your industrial needs, it is essential to familiarize yourself with the top manufacturers in the market. These companies not only provide high-quality products but also offer outstanding customer support and innovative solutions for various applications. In this in-depth guide, we will overview the top vertical slurry pump manufacturers, highlighting their strengths and key features.
Metso Corporation:
Metso Corporation is a renowned name in the world of vertical slurry pumps. They offer a wide range of products designed to handle the most challenging conditions in sectors like mining, mineral processing, and power generation. Metso pumps are known for their reliability, efficiency, and durability, making them a top choice for many industries.
Weir Group:
Another prominent player in the vertical slurry pump market is the Weir Group. They specialize in providing customized solutions to meet the specific needs of their customers. With a strong focus on innovation and technology, Weir Group pumps are designed to deliver maximum performance and long-term reliability.
KSB Group:
KSB Group is a leading manufacturer of vertical slurry pumps with a global presence. They offer a diverse range of products that cater to various industries, including mining, chemical processing, and wastewater treatment. KSB pumps are recognized for their high efficiency, low maintenance requirements, and robust construction.
Flowserve Corporation:
Flowserve Corporation is a trusted name in the vertical slurry pump industry, known for its cutting-edge technology and superior quality products. Their pumps are designed to handle abrasive and corrosive materials with ease, making them ideal for tough industrial applications. Flowserve pumps are also renowned for their energy efficiency and long service life.
Schurco Slurry:
Schurco Slurry is a niche player in the vertical slurry pump market, specializing in providing reliable and cost-effective solutions for various industries. Their pumps are designed to withstand harsh operating conditions and deliver consistent performance. Schurco Slurry pumps are known for their easy maintenance and quick installation, making them a popular choice among customers.
In conclusion, choosing the right vertical slurry pump manufacturer is crucial for ensuring the success of your industrial operations. By considering the strengths and key features of the top manufacturers in the market, you can make an informed decision that meets your specific requirements. Whether you prioritize reliability, efficiency, or innovative solutions, these top vertical slurry pump manufacturers have got you covered.
Comparative Analysis of Vertical Slurry Pump Manufacturers:
Vertical slurry pumps are an essential component in various industries due to their ability to handle abrasive and corrosive slurries effectively. Selecting the right vertical slurry pump manufacturer is vital to ensure optimal performance and efficiency. In this detailed guide, we will delve into the top vertical slurry pump manufacturers in the market and conduct a comparative analysis to assist you in making an informed decision.
Warman:
Warman is a renowned name in the world of slurry pumps, offering a wide range of vertical pumps known for their durability and reliability. With a history spanning decades, Warman has established itself as a leader in the industry, providing innovative solutions for various applications. Their vertical slurry pumps are designed to withstand the harshest operating conditions, making them a preferred choice for many customers.
Weir Minerals:
Weir Minerals is another leading manufacturer of vertical slurry pumps, known for their high-quality products and exceptional customer service. Their pumps are designed to deliver superior performance and efficiency, ensuring optimal productivity for their users. With a global presence and a strong reputation in the industry, Weir Minerals is a trusted name for vertical slurry pump solutions.
Metso:
Metso is a well-known manufacturer of vertical slurry pumps designed for heavy-duty applications. Their pumps are built to handle the toughest slurries, offering reliable performance and long-lasting durability. With a focus on innovation and technology, Metso continues to push the boundaries of pump design, providing cutting-edge solutions for their customers.
KSB:
KSB is a global player in the pump industry, offering a comprehensive range of vertical slurry pumps for various applications. Their pumps are recognized for their efficiency and robust construction, making them a popular choice for customers worldwide. With a strong research and development team, KSB continues to introduce new and improved pump models to meet the evolving needs of the market.
In conclusion, selecting the right vertical slurry pump manufacturer is critical for ensuring the performance and efficiency of your operations. By considering the offerings of top manufacturers such as Warman, Weir Minerals, Metso, and KSB, you can make an informed decision based on your specific requirements. Remember to evaluate factors such as reliability, durability, and performance when selecting a vertical slurry pump manufacturer to ensure optimal results for your operations.
In conclusion, after conducting thorough research and analysis, we have compiled a comprehensive guide highlighting the top vertical slurry pump manufacturers in the market. With over 20 years of experience in the industry, we have identified the leading companies that excel in providing high-quality, efficient, and reliable vertical slurry pumps. Whether you are in need of a pump for mining, dredging, or industrial applications, these manufacturers offer a wide range of options to suit your specific needs. By investing in products from these reputable companies, you can rest assured that you are getting top-notch equipment that is built to last. Choose from our list of top vertical slurry pump manufacturers and elevate your pumping operations to new heights.

Horizontal Slurry Pump
1. Features

Multiple sealing options: expeller seal, packing seal, or mechanical seal
High interchangeability of spare parts, extending service life
Stable operation with low noise and vibration
Robust structure with long service life
Wide flow passages, suitable for handling large particles
Strong corrosion and wear resistance


2. Applications
Horizontal slurry pumps are widely used in:



Mining and mineral processing plants (concentrate and tailings transport)
Coal preparation plants (medium transport)
Metallurgy and construction industries
Cement plants (slurry conveying)
Aluminum plants (high-temperature, crystallizing slurries)














They are ideal for transporting slurries with concentrations up to 50%.

3. Working Principle
The motor drives the pump shaft via a belt and pulley system, causing the impeller to rotate. Slurry enters the pump chamber through the inlet and is accelerated by the impeller, converting mechanical energy into kinetic and pressure energy, and then discharged.

Vertical Slurry Pump
Vertical slurry pumps (also known as sump pumps) are designed for submerged operation and are widely used in specific industrial scenarios.

1. Features


Expeller design reduces back pressure and extends seal life
Flow parts made of high-chrome wear-resistant cast iron or rubber-lined materials
Excellent resistance to abrasion and corrosion
Lightweight and compact structure
Easy installation, especially in confined spaces



2. Working Principle
The impeller is mounted on a vertical shaft and rotates within the slurry. The motor drives the impeller via a belt system. A centrifugal wheel is installed to prevent slurry from entering the bearing assembly. The impeller generates pressure to transport the slurry.

3. Applications
Vertical slurry pumps are mainly used in:



Sump and pit slurry transport (below ground level)
Mineral processing (tailings, concentrates, coal slurry)
Oil drilling mud systems
Chemical, power, and construction industries














They are especially suitable for handling abrasive or corrosive slurries in submerged conditions.
