ZGB Heavy Duty Horizontal Centrifugal Slurry Pump
CNSME®20+ producer of slurry pumps
OME&ODM services available
Manufacture slurry pump spare parts
Froth pumps, FGD pumps, centrifugal pumps, heavy-duty pumps, horizontal/vertical pumps
Mainly used in thermal power plants, mining, coal washing, metallurgy, petrochemical, building materials, dredging and other industrial sectors
General Introduction

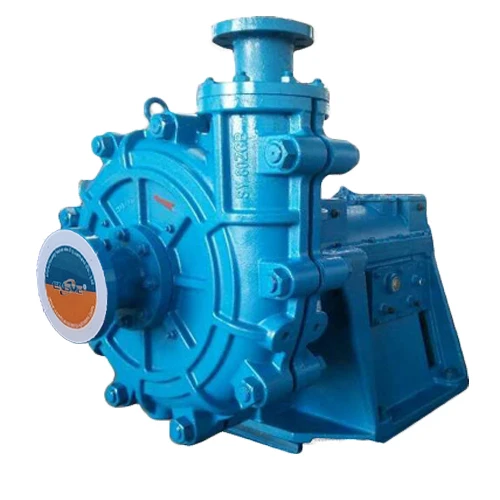

▶ZGB pumps are heavy duty hard metal slurry pumps mainly used for thermal power plants, mining, coal washing, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc.
▶The ZGB pumps rotating speed is fixed, 740r/min or 980r/min or 1480r/min. Less power consumption is realized by DC (Direct connection) design. The capacity and head of the pump can be adjusted by altering the outer diameter of impeller. The higher the speed is, the smaller the impeller will become.
▶ZGB pumps are mostly seen in use in series to achieve higher discharge heads.
▶ The metric bearing is lubricated by oil: scientific lubricating and cooling system ensure that the bearing operates under low temperature.
▶The wet parts adopt interchangeable anti-abrasive and anti-corrosive alloy material.
CNSME PUMP
Applications
Iron Ore Dressing Plant, Copper Concentration Plant, Gold Mine Concentration Plant, Molybdenum Concentration Plant,Potash Fertilizer Plant, Other Mineral Processing Plants, Alumina Industry, Coal Washery, Power Plant, Sand Excavation,Building Material Industry, Chemical Industry, Other industries
Materials and Structure
| Description of Parts | Material | Material Code |
| Pump Body, Split-Casing | Grey Iron | G20/G21 |
| Ductile Iron | D20/D21 | |
| Impeller, Volute, Wear Liners, Expeller, Expeller Ring, Stuffing Box |
27% High Chrome | A05 |
| 15/3 Chrome/Moly Iron | A07 | |
| Corrosion-resistant 35% Chrome | A33 | |
| 28% High Chrome, Low Carbon | A49 | |
| Shaft | 304 Stainless Steel | C21 |
| 316 Stainless Steel | C23 | |
| Shaft Sleeve | 304 Stainless Steel | C21 |
| 316 Stainless Steel | C23 | |
| Aluminum Oxide Coating, White | J04 | |
| Chrome Oxide Coating, Black | J05 |
