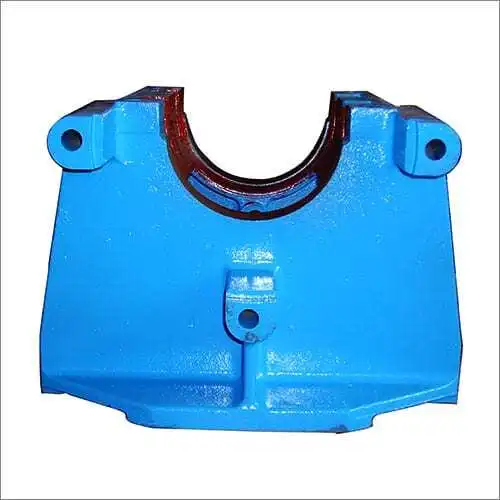

Cast Iron Slurry Pump Support Base

Brand: CNSME
Model Number: 003M
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1 Piece
Delivery Time: 15 Working Days
Payment Terms: Western Union, T/T
Supply Ability: 10 Pcs per Month
Packaging Details: Wooden crate

Inquiry

Write a Review

Specifications

Base frame	A	B	C	D	E	R	F	G	S	T
Allowable matching power （Kw）	7.5	15	30	60	120	300	260	600	560	1200
Base weight （Kg）	17	24	45	77.5	154	228	555	1006	546	1156
Shaft seal water volume （I/s）	0.15	0.25	0.35	0.55	0.70	0.70	0.70	1.20	1.20	1.60

Slurry pump base part code

Frame Code	AH Slurry Pump	Materials
B003M	1.5/1B-AH, 2/1.5B-AH	HT250, QT500
C003M	3/2C-AH, 4/3C-AH	HT250, QT500
D003M	4/3D-AH, 6/4D-AH	HT250, QT500
E003M	6/4E-AH, 8/6E-AH	HT250, QT500
R003M	8/6R-AH	HT250, QT500
FAM003M	8/6F-AH, 10/8F-AH, 12/10F-AH	HT250, QT500
ST003M	10/8ST-AH, 12/10ST-AH, 14/12ST-AH	HT250, QT500
TU003	16/14TU-AH, 18/16TU-AH, 20/18TU	HT250, QT500
Frame Code	HH Slurry Pump	Materials
C003M	1.5/1C-HH	HT250, QT500
D003M	3/2D-HH	HT250, QT500
E003M	4/3E-HH	HT250, QT500
F003M	6/4F-HH	HT250, QT500
Frame Code	M Slurry Pump	Materials
E003M	10/8E-M	HT250, QT500
R003M	10/8R-M	HT250, QT500
Frame Code	L Slurry Pump	Materials
A003M	20A-L	HT250, QT500
B003M	50B-L	HT250, QT500
C003M	75C-L	HT250, QT500
D003M	100D-L	HT250, QT500
E003M	150E-L	HT250, QT500
S003M	300S-L	HT250, QT500
Frame Code	G(H) Gravel Pump	Materials
D003M	6/4D-G	HT250, QT500
E003M	8/6E-G	HT250, QT500
F003M	10/8F-G	HT250, QT500
S003M	10/8S-G, 10/8S-GH	HT250, QT500
G003M	12/10G-G, 14/12G-G, 12/10G-GH	HT250, QT500
TU003	16/14TU-GH	HT250, QT500
