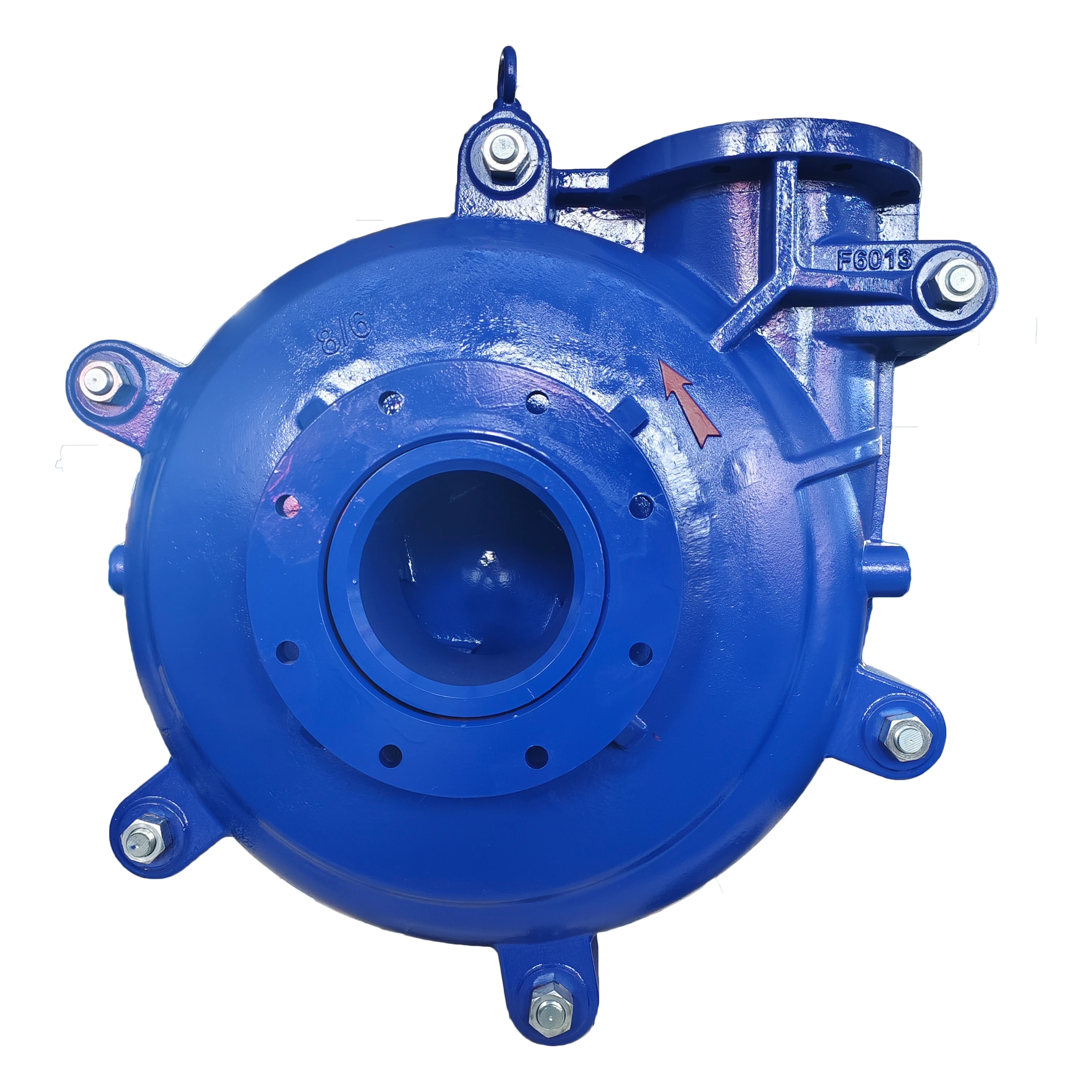

CNSME® 8/6 AH Slurry Pump

CNSME® SH Slurry Pump is equivalent to warman AH Slurry Pump,It is a single-stage, single-suction and horizontal heavy duty centrifugal slurry pump with a cantilever design, AH High Chrome Alloy Slurry Pumps are mainly used in solids containing applications. Depending on process conditions, equipment should be suitable for highly abrasive or corrosive liquids.

Pump Model: 8/6 AH
Discharge: 152 mm（6"）
Suction: 203 mm（8"）
Material: Metal
Impeller: F6147
Impeller Diameter: 510 mm
Impeller Type: Closed
Vanes: 5
Max Speed: 1300 rpm
Max Passage Size: 63 mm
Rated Frame: E / EE / F / FF / S
Maximum head shown: ≈ 82 m
Flow range shown: ≈ 0–1,050 m³/h

* * * PERFORMANCE FOR CLEAR WATER

Inquiry

Write a Review

Product Advantages

icon Highly efficient and Wear-resistant: industrial solutions for 8/6-AH slurry pumps . This is a heavy duty slurry pump that is extremely durable and easy to maintain. It is highly efficient and corrosion and erosion resistant.

icon Highly efficient and Wear-resistant: industrial solutions for 8/6-AH slurry pumps . It has a long wear life and is extremely cost efficient. The use of effective liners make this pump easy to maintain.

Highly efficient and Wear-resistant: industrial solutions for 8/6-AH-AH slurry pumps, The pump's many benefits include its split outer casing halves, a large diameter shaft with heavy duty roller bearings, wear resistant wet end spare parts, enclosed impeller and one piece casting pump case.

Highly efficient and Wear-resistant: industrial solutions for 8/6-AH slurry pumps, 8/6-AH is a slurry pump with discharge size 6 inch.

icon Highly efficient and Wear-resistant: industrial solutions for 8/6-AH slurry pumps, 8/6-AH is mostly sold to our customers from Russia, Holland, Italy and other Eastern and Western European countries. CNSME will always be your reliable partner for quality slurry pumps and pump spare parts.

Specifications

AH Series Metal Slurry Pump Specifications
Pump Model	S×D (inch)	Allowable Max. Power (kw)	Material	Clear Water Performance						Impeller
			Material	Capacity Q		Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)	Weight (kg)
			Impeller	m3/h	l/s	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)	Weight (kg)
1.5/1B-AH	1.5×1	15	Metal (A05)	12.6-28.8	3.5-8	6-68	1200-3800	40	2-4	5	152	91
2/1.5B-AH	2×1.5	15		32.4-72	9-20	6-58	1200-3200	45	3.5-8		184	118
3/2C-AH	3×2	30		39.6-86.4	11-24	12-64	1300-2700	55	4-6		214	191
4/3C-AH	4×3	30		86.4-198	24-55	9-52	1000-2200	71	4-6		245	263
4/3D-AH	4×3	60		86.4-198	24-55	9-52	1000-2200	71	4-6		245	363
6/4D-AH	6×4	60		162-360	45-100	12-56	800-1550	65	5-8		365	626
6/4E-AH	6×4	120		162-360	45-100	12-56	800-1550	65	5-8		365	728
8/6E/AH	8×6	120		360-828	100-230	10-61	500-1140	72	2-9		510	1473
8/6F-AH	8×6	260									510	1496
8/6R-AH	8×6	300									510	1655
10/8F-AH	10×8	260		612-1368	170-380	11-61	400-850	71	4-10		686	3193
10/8ST-AH	10×8	560		612-1368	170-380	11-61	400-850	71	4-10		686	3750
12/10F-AH	12×10	260		936-1980	260-550	7-68	300-800	82	6		762	3760
12/10ST-AH	12×10	560		936-1980	260-550	7-68	300-800	82	6		762	4318
14/12ST-AH	14×12	560		1260-2772	350-770	13-63	300-600	77	3-10		965	6409
16/14TU-AH	16×14	1200		1368-3060	380-850	11-63	250-550	79	4-10		1067	10000
