300TV-SP Vertical Slurry Pump | CNSME® PUMP

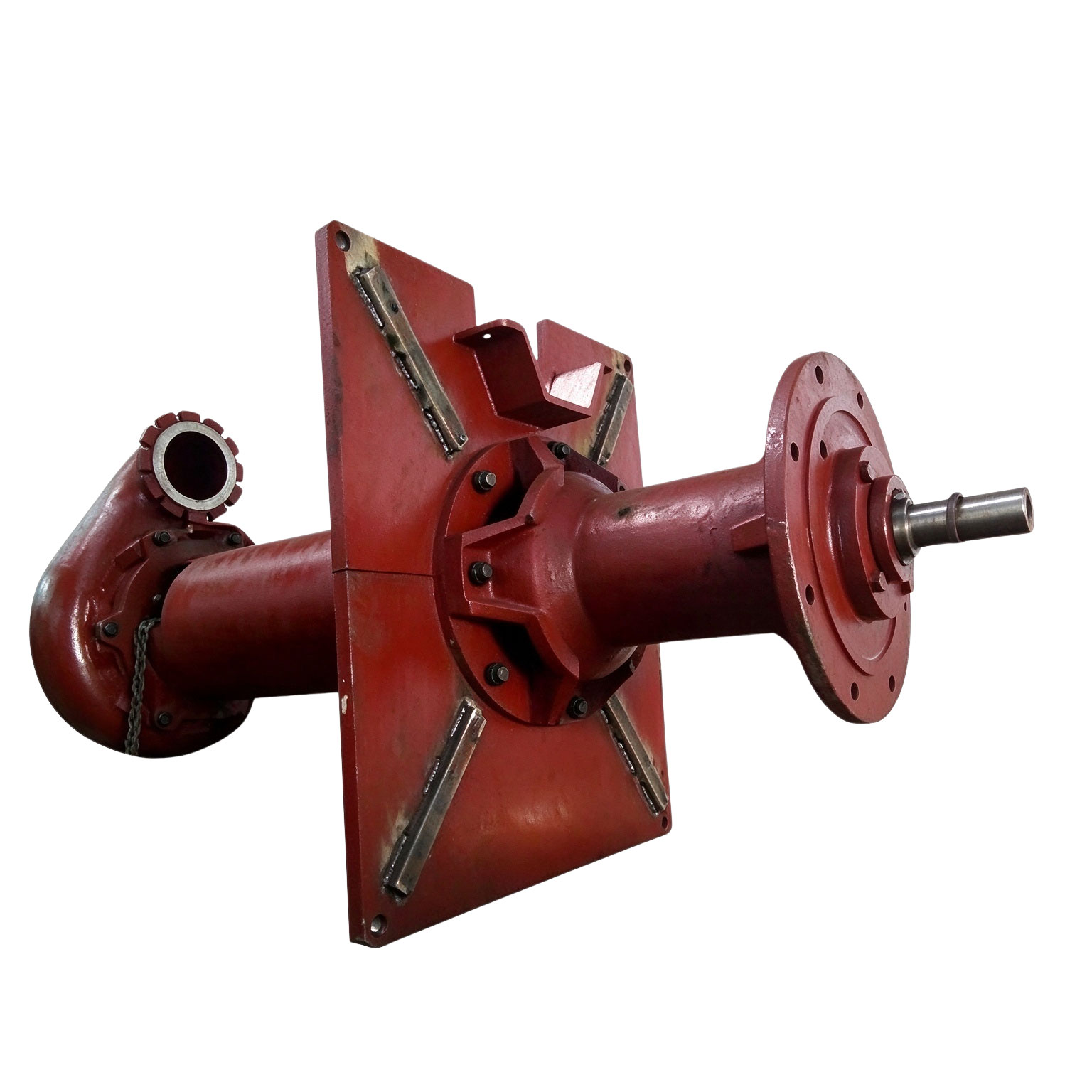

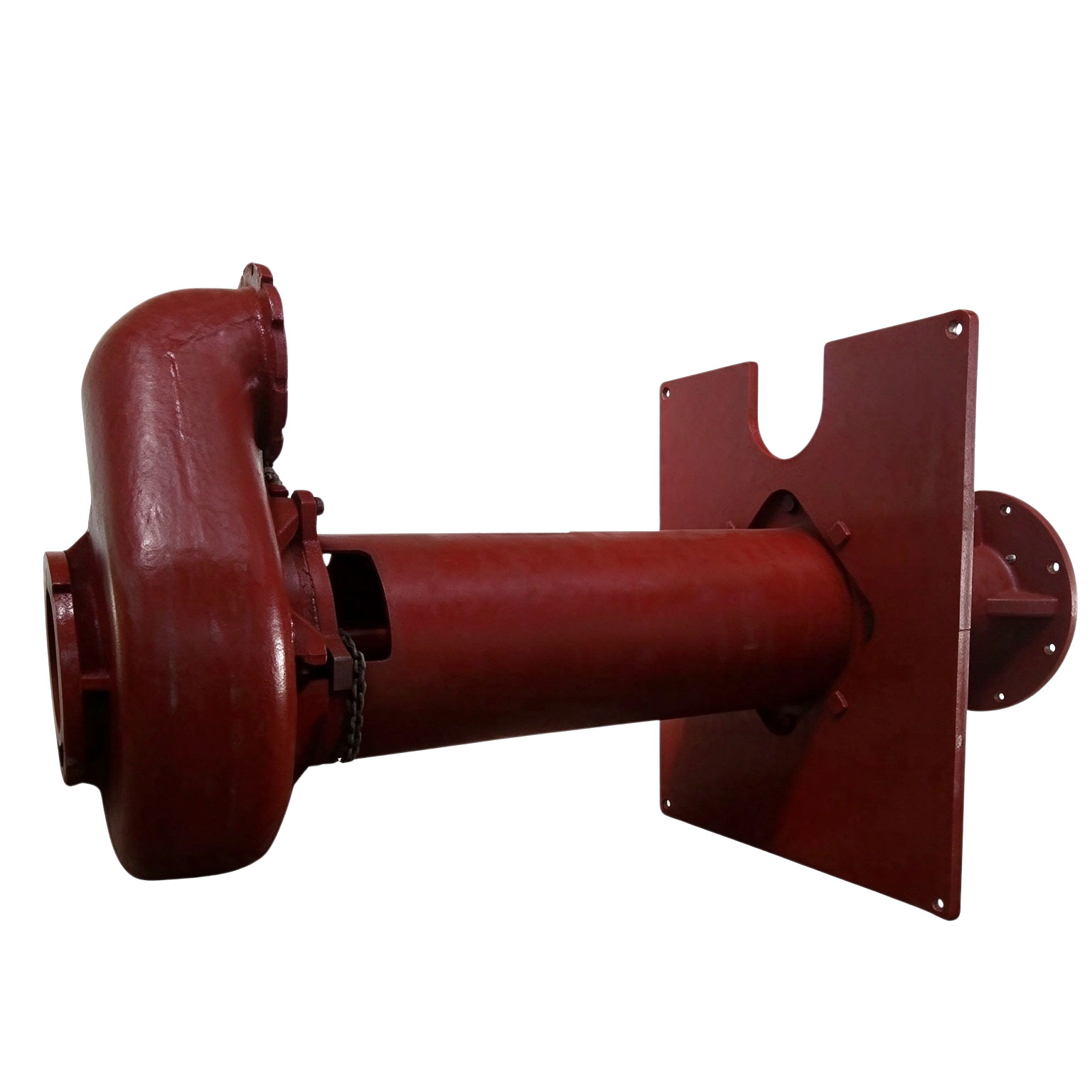

The CNSME 300TV-SP(L) Vertical Slurry Pump features a 5-vane open impeller and wear-resistant metal wet-end components. Designed for abrasive slurry handling, it is suitable for mining, mineral processing, and other industrial applications.

No Shaft Seal Required: Operates without a shaft seal or seal water, simplifying the pump structure.
Suitable for Insufficient Inflow Conditions: Can operate under conditions where the slurry supply to the pump is insufficient.
Wear-Resistant Metal Components: Designed to handle abrasive slurries containing solid particles.
Extended Shaft Option: The 300TV-SP(L) configuration is available for deeper sump installations, meeting the requirements of applications with greater liquid depths.

Typical Applications: Mining, mineral processing, tailings handling, and industrial slurry transfer.

Inquiry

Write a Review

Product Advantages

icon Vertical Submerged Design

The pump is installed vertically, with its pumping end submerged in the slurry. This configuration is suitable for sump pumping and slurry collection applications where conventional horizontal pump installations may be less convenient.

5-Vane Open Impeller

The 5-vane open impeller is designed for slurry handling. Its suitability for a particular application depends on the solids characteristics, slurry concentration, and required operating conditions.

Wear-Resistant Metal Wet-End Components

The SP-type pump uses wear-resistant metal for its wetted components. This construction is suitable for abrasive slurry applications involving solid particles. Material selection should consider particle hardness, slurry concentration, and the chemical properties of the medium.

No Shaft Seal or Seal Water Required

The vertical sump pump design does not require a shaft seal or seal water. This eliminates the need for a shaft-sealing water supply and simplifies the sealing arrangement, helping reduce associated maintenance requirements.

Operation Under Insufficient Inflow Conditions

The pump can operate under conditions where the slurry inflow is insufficient. Actual operation must still account for the available liquid level, slurry supply, and site operating conditions.

Standard and Extended-Shaft Configurations

The 300TV-SP(L) designation covers the standard and extended-shaft configurations. The extended-shaft version is intended for installations requiring greater liquid submergence, allowing the pump configuration to be matched to different sump depths.

Specifications

Specifications of SP(R) Series Vertical Slurry Pumps
Model	Frame Type	Max. Rating (kW)	Sump Depth mm	Performance for Clear Water				Impeller
				Capacity Q	Head	Speed	Efficiency	Type	No. of Vanes	Vane Φ mm	Passage mm
				m3/hr	m	r/min	%	Type	No. of Vanes	Vane Φ mm	Passage mm
40PV-SP	PV	15	900	10--44	5--28	1000-2200	20-40	Open	5	188	12
40PV-SP	PV	15	900	10--40	9--37	1400-2600	15-32	Cyclo	8	195	26
40PV-SPR	PV	15	900	10--50	8--52	1200-3000	20-40	Open	5	188	12
65QV-SP	QV	30	1200	20--120	4--56	600-2000	25-51	Open	5	280	15
65QV-SP	QV	30	1200	20--110	5--28	700-1500	20-35	Cyclo	8	290	40
65QV-SPR	QV	30	1200	20--100	8--46	700-850	20-47.5	Open	5	280	23
100RV-SP	RV	75	1500	50--300	6--50	500-1400	20-56	Open	5	370	32
100RV-SP	RV	75	1500	50--250	6--31	600-1200	20-40	Cyclo	8	390	70
100RV-SPR	RV	75	1500	50--270	9--46	600-1400	30-60	Open	5	370	40
150SV-SP	SV	110	1800	100--500	7--37	500-1000	20-55	Open	5	450	45
150SV-SP	SV	110	1800	100--450	7--37	500-1000	20-40	Cyclo	8	480	80
150SV-SPR	SV	110	1800	100--450	7--35	500-1000	20-56	Open	5	450	45
200SV-SP	SV	110	1800	200--800	7--38	400-850	30-64	Open	5	520	65
250TV-SP	TV	200	1800	300--1000	8--35	400-750	20-63	Open	5	575	65
300TV	TV	200	2100	360--1400	5--28	350-700	20-62	Open	5	610	65
Material Options of Wet end Parts: A05, A33, A49, A61, R55

CONSTRUCTION OFSP(R) Series Vertical Slurry Pumps

Dimension Drawing

Specifications

Structure Characteristics

Vertical cantilever type, single pump casing structure: without any shaft seal, immersed in the liquid work, suitable for conveying abrasive, coarse particles, high concentration slurry. Wear resistant and corrosion resistant materials: the pump casing and impeller are made of wear-resistant and corrosion resistant materials, which can run for a long time under the harsh working environment.

SP Vertical Slurry Pump

application

Vertical Slurry Pump

Vertical Slurry Pump Used in Slovakia
