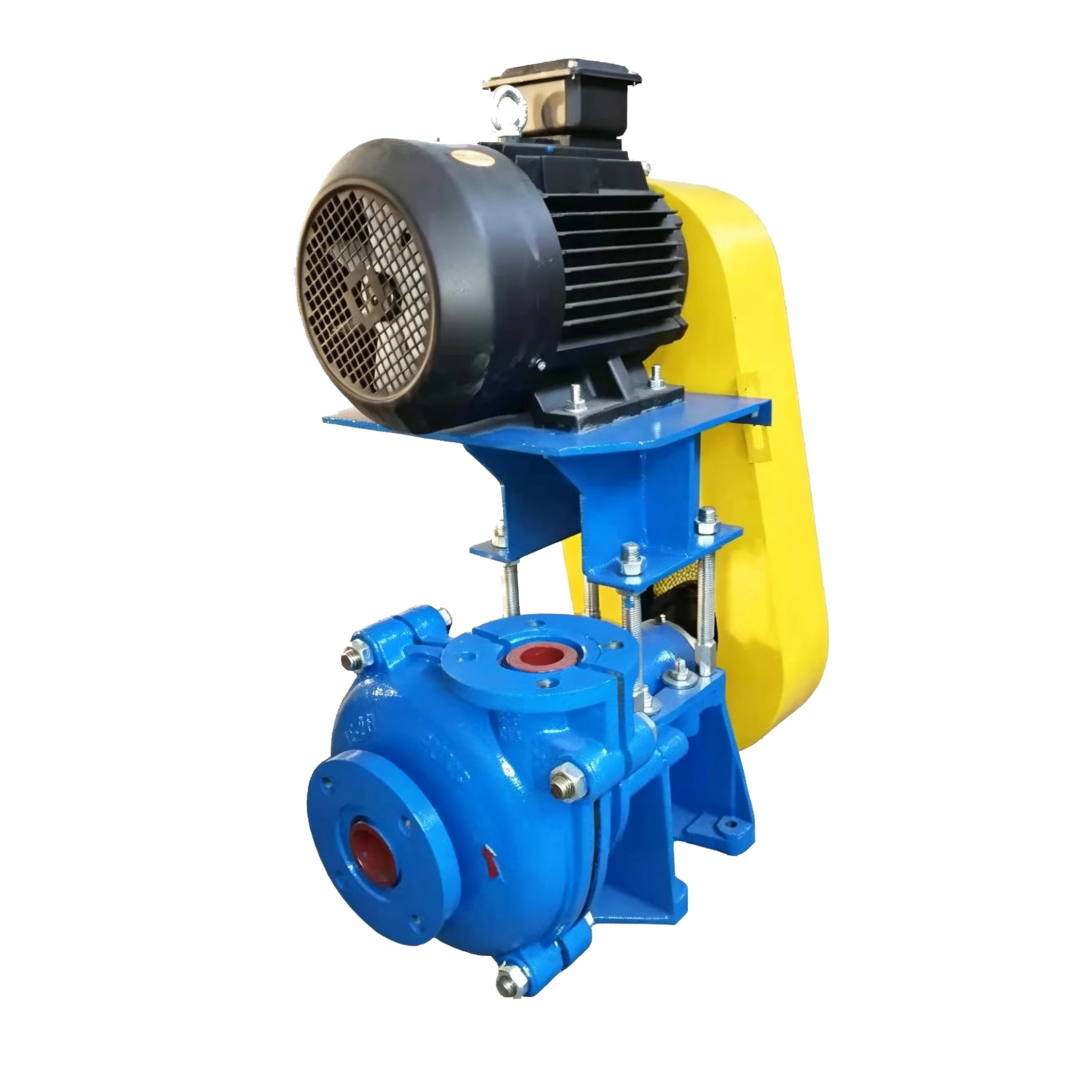

2/1.5B-AH Heavy Duty Horizontal Slurry Pump

2/1.5B-AH Heavy Duty Horizontal Slurry Pump

The 2/1.5B-AH heavy-duty horizontal slurry pump is a small-sized model of the AH series. The minimal specification within this product range is 1.5/1B-AH.

Pump Model	2/1.5B-AH
Pump Type	Horizontal Centrifugal Slurry Pump
Liner Material	Metal
Impeller Material	Metal
Impeller No.	B15127
Impeller Diameter	184 mm
Vanes	5
Seal Type	Gland Sealed
Maximum Speed	3200 rpm
Maximum Passage Size	19 mm
Performance Medium	Clear Water

*Performance data is based on clear water testing. Actual slurry performance may vary depending on slurry specific gravity, concentration, particle size and operating conditions.

Inquiry

Write a Review

Product Advantages

icon Excellent Wear Resistance: Metal impeller and liner provide reliable wear resistance for abrasive slurry containing solid particles.

icon Reliable Performance: Centrifugal design delivers stable operation for continuous slurry handling.

icon Compact Design: The 2/1.5B-AH offers a compact footprint, making it suitable for installations with limited space.

icon Easy Maintenance: The design facilitates inspection and replacement of wet-end components, helping reduce maintenance downtime.

icon Wide Operating Capability: With a maximum speed of 3200 rpm and a maximum passage size of 19 mm, it is suitable for mining, mineral processing, coal and industrial slurry applications.

2/1.5B-AH Heavy Duty Horizontal Slurry Pump 8

Easy maintenance with its low cost

These pumps are characterized by long life, efficient operation and easy maintenance with its low cost. Pumps are available with either a rubber or a metal lining of abrasive – and corrosion resistant materials. Bearings adopted are heavy duty, with increased load.

2/1.5B-AH Heavy Duty Horizontal Slurry Pump 9

Application of CNSME slurry pumps

Application of CNSME slurry pumps: mining and processing, mining and metallurgical plants, power plants, cement production enterprises, and diamond-gold mines, technological crushing line, mineral processing, etc.

Specifications

AH Series Metal Slurry Pump Specifications
Pump Model	S×D (inch)	Allowable Max. Power (kw)	Material	Clear Water Performance						Impeller
			Material	Capacity Q		Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)	Weight (kg)
			Impeller	m3/h	l/s	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)	Weight (kg)
1.5/1B-AH	1.5×1	15	Metal (A05)	12.6-28.8	3.5-8	6-68	1200-3800	40	2-4	5	152	91
2/1.5B-AH	2×1.5	15		32.4-72	9-20	6-58	1200-3200	45	3.5-8		184	118
3/2C-AH	3×2	30		39.6-86.4	11-24	12-64	1300-2700	55	4-6		214	191
4/3C-AH	4×3	30		86.4-198	24-55	9-52	1000-2200	71	4-6		245	263
4/3D-AH	4×3	60		86.4-198	24-55	9-52	1000-2200	71	4-6		245	363
6/4D-AH	6×4	60		162-360	45-100	12-56	800-1550	65	5-8		365	626
6/4E-AH	6×4	120		162-360	45-100	12-56	800-1550	65	5-8		365	728
8/6E/AH	8×6	120		360-828	100-230	10-61	500-1140	72	2-9		510	1473
8/6F-AH	8×6	260									510	1496
8/6R-AH	8×6	300									510	1655
10/8F-AH	10×8	260		612-1368	170-380	11-61	400-850	71	4-10		686	3193
10/8ST-AH	10×8	560		612-1368	170-380	11-61	400-850	71	4-10		686	3750
12/10F-AH	12×10	260		936-1980	260-550	7-68	300-800	82	6		762	3760
12/10ST-AH	12×10	560		936-1980	260-550	7-68	300-800	82	6		762	4318
14/12ST-AH	14×12	560		1260-2772	350-770	13-63	300-600	77	3-10		965	6409
16/14TU-AH	16×14	1200		1368-3060	380-850	11-63	250-550	79	4-10		1067	10000
