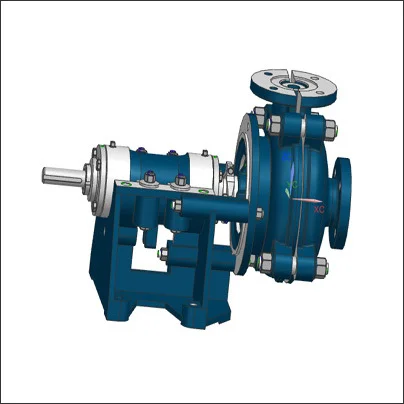

1.5/1B AH slurry pump

Model:1.5/1B AH

Max.Power(kw):15

Meterials:

Liner:Metal;

Impeller:Metal

Clear Water Performance:

Capacity Q(m3/h):12.6-28.8

Head H(m):6-68

Speed n(rpm):1200-3800

Eff. η(%):40

NPSH(m):2-4

Impeller Vane No.:5

Inquiry

Write a Review

Product Advantages

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 1.5/1B AH Slurry Pump wet parts are made of wear-resistant high chromium alloy.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 The Slurry Pump bearing assembly uses a cylindrical structure, adjusting the space between the impeller and the front liner easily. They can be removed completely when being repaired. Bearing assembly uses grease lubrication. CNSME's 1.5/1B AH slurry pumps use internationally renowned bearings.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 The shaft seal could use the packing seal, expeller seal and mechanical seal for all slurry pumps.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications at its working site.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 There are the drive types, such as V-belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Wide performance, good NPSH and high efficiency. The 1.5/1B AH slurry pump can be installed in a multistage series to meet the delivery for long distances.

Specifications

AH Series Metal Slurry Pump Specifications
Pump Model	S×D (inch)	Allowable Max. Power (kw)	Material	Clear Water Performance						Impeller
			Material	Capacity Q		Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)	Weight (kg)
			Impeller	m3/h	l/s	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)	Weight (kg)
1.5/1B-AH	1.5×1	15	Metal (A05)	12.6-28.8	3.5-8	6-68	1200-3800	40	2-4	5	152	91
2/1.5B-AH	2×1.5	15		32.4-72	9-20	6-58	1200-3200	45	3.5-8		184	118
3/2C-AH	3×2	30		39.6-86.4	11-24	12-64	1300-2700	55	4-6		214	191
4/3C-AH	4×3	30		86.4-198	24-55	9-52	1000-2200	71	4-6		245	263
4/3D-AH	4×3	60		86.4-198	24-55	9-52	1000-2200	71	4-6		245	363
6/4D-AH	6×4	60		162-360	45-100	12-56	800-1550	65	5-8		365	626
6/4E-AH	6×4	120		162-360	45-100	12-56	800-1550	65	5-8		365	728
8/6E/AH	8×6	120		360-828	100-230	10-61	500-1140	72	2-9		510	1473
8/6F-AH	8×6	260									510	1496
8/6R-AH	8×6	300									510	1655
10/8F-AH	10×8	260		612-1368	170-380	11-61	400-850	71	4-10		686	3193
10/8ST-AH	10×8	560		612-1368	170-380	11-61	400-850	71	4-10		686	3750
12/10F-AH	12×10	260		936-1980	260-550	7-68	300-800	82	6		762	3760
12/10ST-AH	12×10	560		936-1980	260-550	7-68	300-800	82	6		762	4318
14/12ST-AH	14×12	560		1260-2772	350-770	13-63	300-600	77	3-10		965	6409
16/14TU-AH	16×14	1200		1368-3060	380-850	11-63	250-550	79	4-10		1067	10000

Construction of AH Slurry Pumps

Dimension Drawing

Specifications

Multiple Driving Models

ZVZ Drive

DC Drive

CV Drive

CLZ Drive

Sealing system

Gland Seal

Expeller Seal

Wet-end Parts

Elastomer Wet-end Components

High Chrome Wet-end Components

AH Slurry Pumps Applications

The 1.5/1 B AH Slurry Pumps are used for highly abrasive/density slurries in processes from cyclone feed to regrind, mill discharge, flotation, mine drainage and tailing in minerals plants, plus other industrial applications. Sometimes, it could also be used in the dredging of settling lagoons and the pumping of drilling mud etc. If you are looking for a 1.5/1B AH slurry pump supplier, CNSMEis your best choice, as one of the best slurry pump manufacturers.

AH Slurry Pumps Applications

AH Slurry Pumps Applications
