CNSME 4RV-AF Vertical Froth Pump – Heavy-Duty Solution for Frothy Slurry Applications

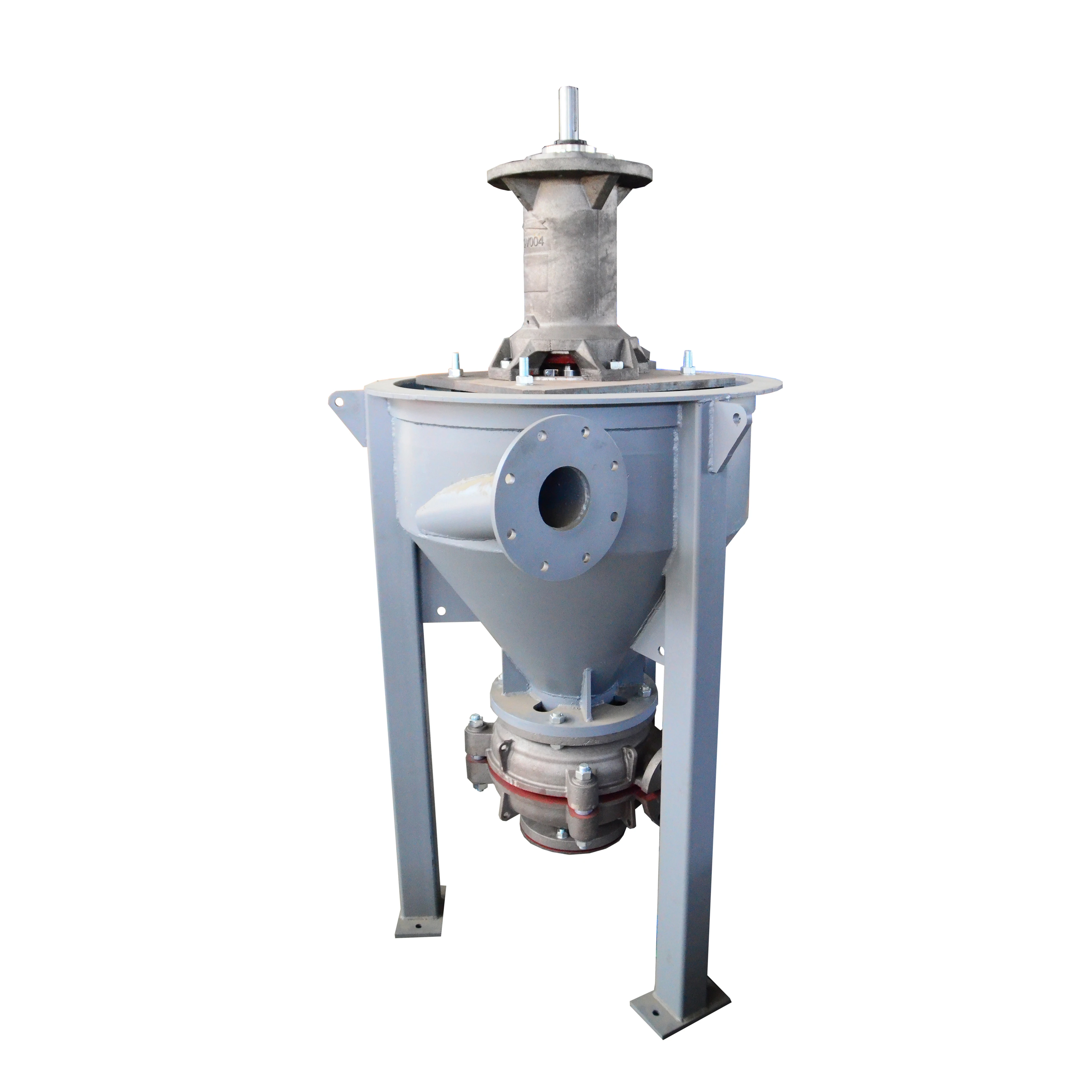

The CNSME AF series froth pumps are specifically designed to improve the handling of frothy slurries commonly encountered in flotation processes. The 4RV-AF model features a cantilever vertical design and a conical tank with a tangential inlet, creating an open vortex that effectively separates air from the slurry, resulting in higher efficiency and continuous, smooth operation.

Key Features
Integrated Pump & Tank Unit for flexible plant layout.

Open Vortex Formation at the sump reduces air locking, ensuring uninterrupted performance.

Cantilever Shaft Design eliminates the need for submerged bearings or shaft seals.

Wear-Resistant Wet End Components for extended operational life in abrasive conditions.

Grease-Lubricated Anti-Friction Bearings support the shaft for low maintenance and high reliability.

Inquiry

Write a Review

Technical Specifications

froth pump Model: 4RV-AF

froth pump Discharge Diameter: 102 mm (4")

froth pump Suction Diameter: 260 mm

froth pump Impeller: AF41427, 5 vanes, closed type, 381 mm diameter

froth pump Flow Capacity: up to 570 m³/h (2500 GPM)

froth pump Head: up to 30 m (98 ft)

froth pump Max Operating Speed: 1000 rpm

froth pump Max Particle Size: 55 mm

froth pump Recommended Motor Power: 75 kW

froth pump Material (Liner & Impeller): High Chrome Alloy Metal

Specifications

Model	Power	Capacity	Head	Speed	Eff.	Inlet dia.	Outlet dia.
Model	P(KW)	Q(m3/h)	H(m)	n(r/min)	ŋ%	(mm)	(mm)
2QV-AF	3-15	6-43	6-30	800-1800	45	100	50
3QV-AF	3-18.5	23-78	5-28	700-1500	55	150	75
4RV-AF	5.5-37	33-187	5-28	500-1050	55	150	100
6SV-AF	15-75	80-393	5-25	250-680	55	200	150
8SV-AF	37-110	126-575	5-26	350-650	55	250	200
