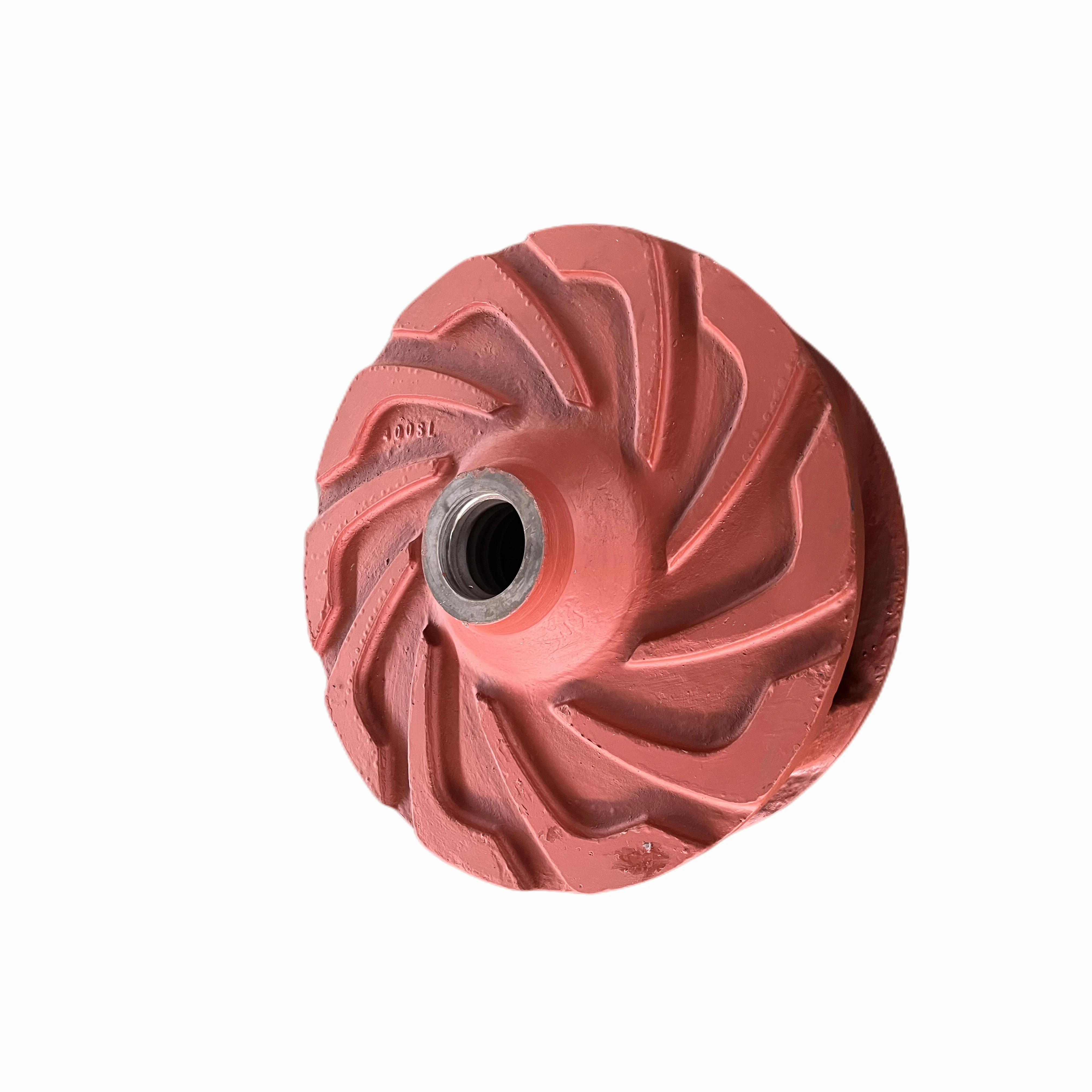

Impeller SL40147 — For CNSME L Series Light Duty Slurry Pump (400ST-L)

The SL40147 impeller is specifically engineered for CNSME L Series light duty slurry pumps, such as the 400ST-L model. Designed for applications involving low-abrasive and low-concentration slurries, this closed-type impeller is known for its high efficiency and long service life. It is available in both high chrome alloy and rubber materials, depending on the working conditions.

Key Features:

Pump Series: L (Light Duty Slurry Pump Series)
Part Number: SL40147 (for 400ST-L model)
Impeller Type: Closed impeller – improves hydraulic efficiency
Available Materials: High Chrome Alloy / Corrosion-resistant Rubber
Head Range: Suitable for low to medium head applications
Interchangeability: Fully interchangeable with Warman® L series parts

Inquiry

Write a Review

Product Overview

Rugged heavy duty slurry pump for medium to lower heads and incorporates the same design points of the AH plus higher efficiency impellers at an attractive initial cost.

Advantages

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Optimized hydraulic design for energy efficiency

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Multiple material options for tailored performance

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Excellent compatibility and easy installation

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Extended service life with stable and reliable operation

Performance Parameter of L Pump

Model	Allowable	MATERIAL		Clear Water Performance						IMPELELR
	Max. Power	LINER	IMPELLER	Capacity Q		Head H	Speed n	MAX.Eff. η	NPSH	NO.OF	Impeller Dia.
	(kw)	LINER	IMPELLER	m3/h	l/s	(m)	(r/min)	(%）	(m)	VANES	(mm)
20A-L	7.5	M	M	2.34-10.8	0.65-3	6-37	1400-3000	30		4	152.4
50B-L	15	M	M	11.5-76	3.2-21.1	8.5-46	1400-2800	62		4	190
75C-L	30	M	M	18-151	5-42	4-46.4	900-2400	57		4	229
100D-L	60	M	M	46.8-324	13-90	7-48.3	800-1800	64	2～3.5	4	305
150E-L	120	M	M	115-568.8	32-158	10.5-51.8	800-1500	60	2～6	4	381
200E-L	120	M	M	234-910	65-235	9.5-40	600-1100	64	3～6	4	457
250E-L	120	M/RU	M	396-1425	110-396	8–30	500-800	77	2～10	5	550
300S-L	560	M	M	468-2538	130-708	8-60	400-950	79	2～10	5	653
350S-L	560	M	M	650-2800	180-780	10-59	400-840	81	3～10	5	736
400ST-L	560	M	M	720-3312	200-920	7-51	300-700	80	2～10	5	825
400ST-L	560	RU	RU	756-3312	210-920	7-37.5	300-600	85	2～10	5	825
450ST-L	560	M	M	1008-4356	280-1210	9-48	300-600	80	2～9	5	933
450ST-L	560	RU	RU	1080-4356	300-1210	9-40	300-550	87	3～10	5	933
550TU-L	1200	M	M	1980-7920	560-2200	10-50	250-475	86	4～10	5	1213
550TU-L	1200	RU	RU	1980-7920	560-2200	10-50	250-475	86	4～10	5	1213
650TU-L	1200	M	M	2520-9108	700-2530	10-39	200-350	86	2～8	5	1425
650TU-L	1200	RU	RU	2520-9108	700-2530	10-55	200-350	86	2～8	5	1425
