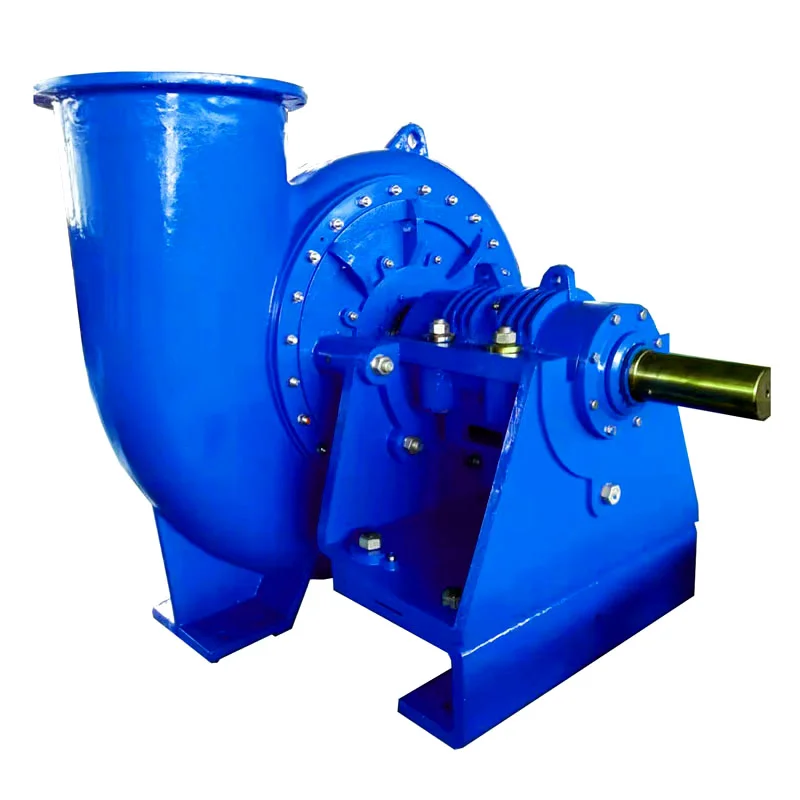

CNSME® FGD Slurry Pump

DT Series FGD Pump
CNSME® DT series FGD(desulfurization) pump is a cantilever horizontal centrifugal pump with axial suction, single-stage single-suction, and single pump casing structure.

Transmission form: DCZ direct drive,
Shaft seal form: mechanical seal.
Installation and application: The pump outlet is directed vertically upwards.

Inquiry

Write a Review

DT FGD slurry pump model

Conveying slurry

Suitable for limestone, gypsum wet desulfurization, for conveying limestone or gypsum slurry. The chloride ion content of the slurry allowed to be transported is up to 20000ppm, the pH value is between 4.5 and 12, the slurry temperature is ≤65°C, and the slurry weight concentration Cw is up to 60%.

APPLICATION

The pump is specially designed for the desulfurization system of the power plant. Mainly used in the desulfurization main circulation system and peripheral circulation system of thermal power plants. It can also be used to transport limestone or gypsum slurries in desulfurization systems in industries such as aluminum and oil refining.

Material of overcurrent parts: The overcurrent parts are made of special materials GLH-5 and GLH-6 specially used for desulfurization conditions.
