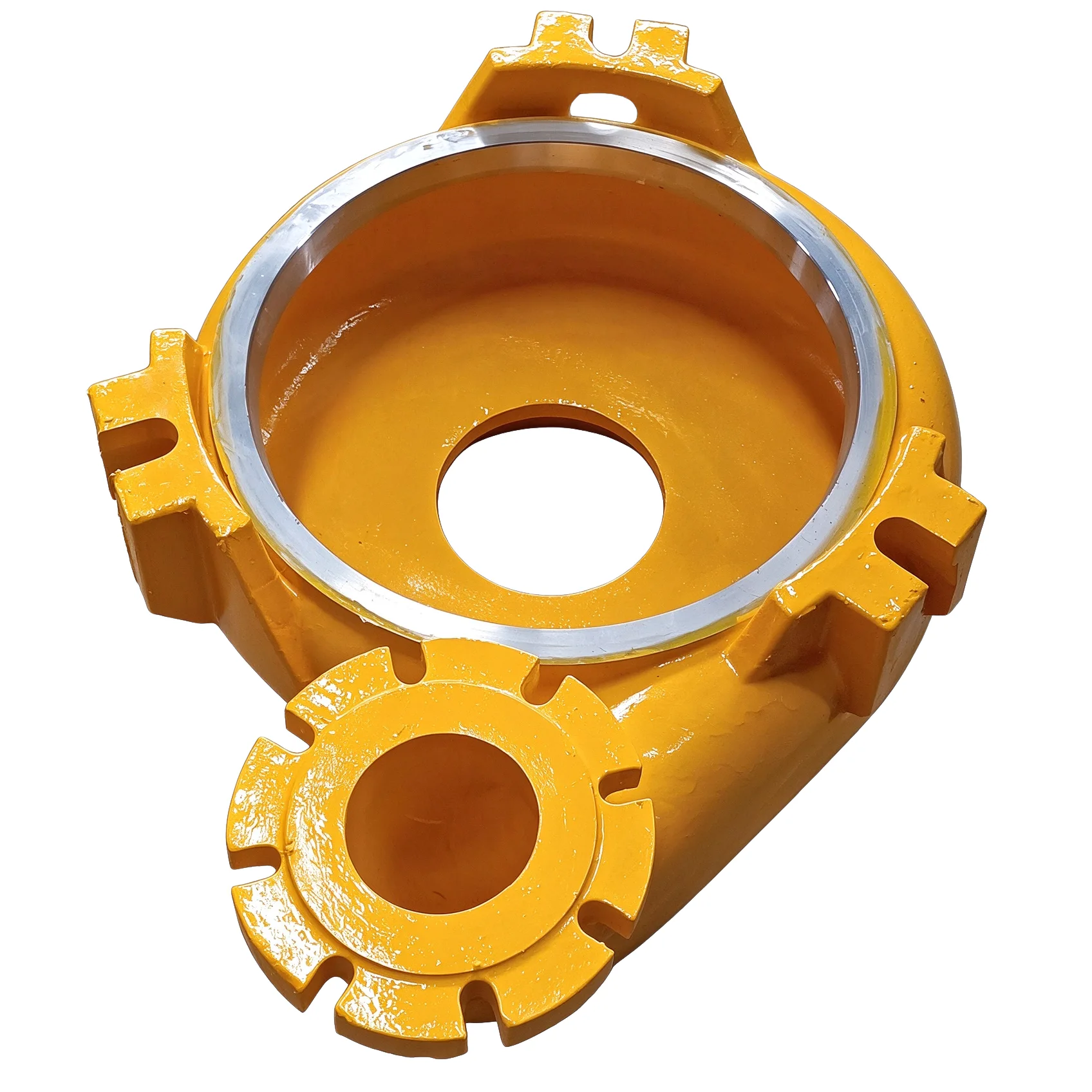

Casing SP10092A05 for 100RV-SP Vertical Pump 1

Casing SP10092A05 for 100RV-SP Vertical Pump 2

Casing SP10092A05 for 100RV-SP Vertical Pump

Casing SP10092A05 is the pump casing for the 100RV-SP Vertical Slurry Pump. As a key wet-end component, it forms the slurry flow passage and directs slurry from the impeller toward the discharge, supporting stable hydraulic performance in abrasive slurry applications.

Key Features

Part No.: SP10092A05
Pump Model: 100RV-SP
Component: Pump Casing
Pump Type: Vertical Slurry Pump
Function: Forms the slurry flow passage and guides slurry flow
Application: Abrasive slurry handling
Value: Supports stable pump performance and reliable operation

Inquiry

Write a Review

100rv-sp vertical pump material description

vertical slurry pump material description

The SP10092A05 Casing is the pump casing used on the 100RV-SP Vertical Slurry Pump. It is an essential wet-end component that forms the main slurry flow passage around the impeller.

During operation, slurry enters the pump through the impeller area and is accelerated by the rotating impeller. The casing collects and guides the slurry flow toward the pump discharge, helping convert and direct the flow generated by the impeller.

The casing operates directly in contact with slurry, so its design and material selection are important for handling abrasive and high-solids slurry. Proper casing performance contributes to stable hydraulic operation and reliable service of the vertical pump.
