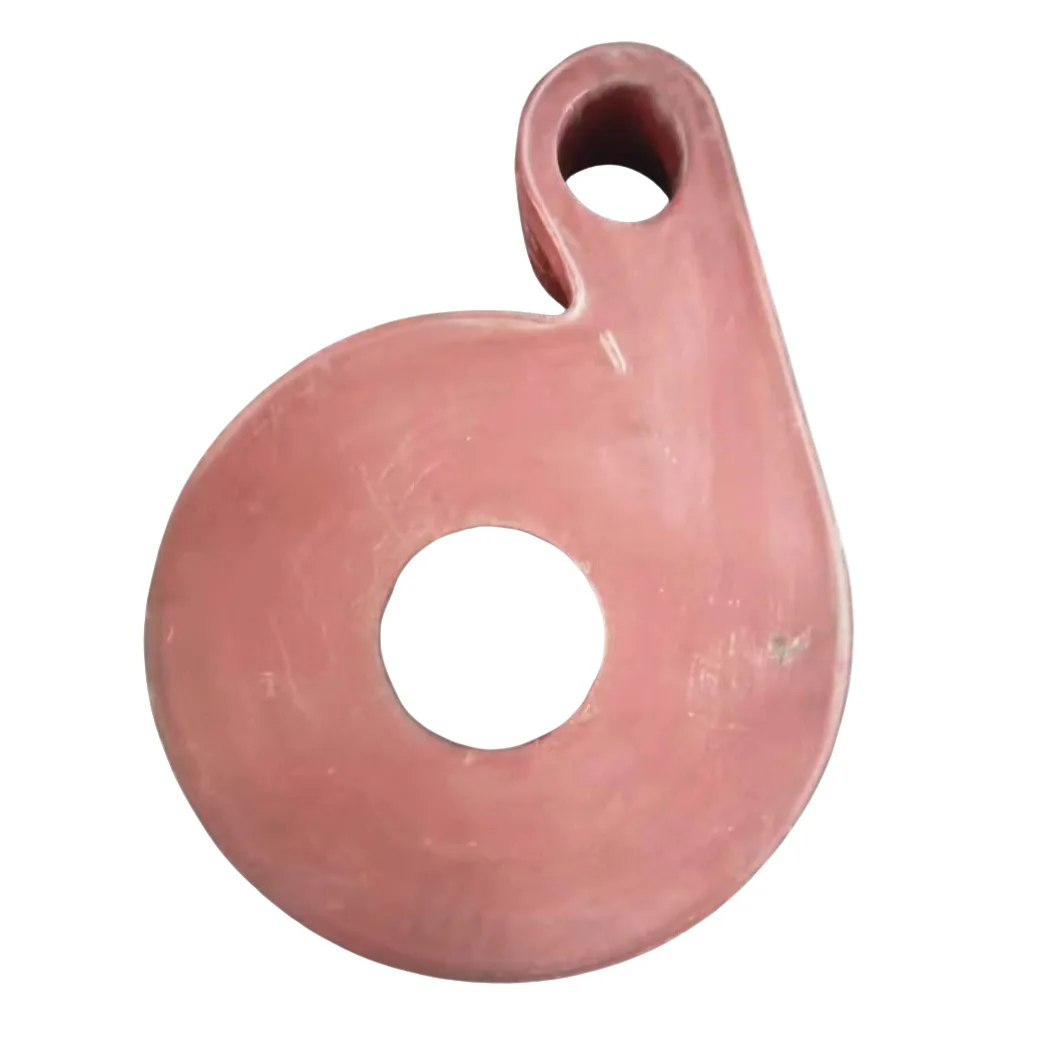

GPS10041A05 Back Liner for 100VE-GPS Slurry Pump 1

GPS10041A05 Back Liner for 100VE-GPS Slurry Pump 2

GPS10041A05 Back Liner for 100VE-GPS Slurry Pump 3

GPS10041A05 Back Liner for 100VE-GPS Slurry Pump

GPS10041A05 Back Liner is a key wet-end component of the 100VE-GPS Slurry Pump. Located at the rear of the pump wet end, the back liner works with the impeller and other wet-end components to form and protect the internal slurry flow passage.

During slurry pumping, the back liner is exposed to the pumped medium and may experience continuous erosion from solid particles. Its structure and material performance are therefore important for maintaining a stable internal flow passage and reliable pump operation.

Key Information

Part Name: Back Liner
Part Number: GPS10041A05
Pump Model: 100VE-GPS
Component Type: Wet-end Component
Main Function: Forms and protects the internal slurry flow passage
Application: Abrasive and solids-containing slurry handling

Inquiry

Write a Review

The GPS10041A05 Back Liner is the back liner used in the 100VE-GPS Slurry Pump and is an important component of the pump's wet end.

During operation, slurry enters the pump and receives energy from the rotating impeller before being directed through the pump's internal flow passage. The back liner is positioned at the rear of the wet-end assembly and works together with the impeller and other components to form the required working space and slurry flow passage.

Because slurry pumps are commonly used to transport mixtures containing mineral particles and other solids, the back liner is exposed to continuous contact with the pumped slurry. Abrasive particles can cause wear on wet-end components over time. Therefore, the structural design, dimensional fit, and material performance of the back liner are important factors in maintaining reliable pump operation.

The GPS10041A05 Back Liner is designed for the 100VE-GPS Slurry Pump, providing the corresponding wet-end configuration required for the pump assembly.
