1.5/1B-AH Slurry Pump | 3D Model & Pump Design

1.5/1B-AH slurry pump is cantilever centrifugal slurry pump, which is suitable for transporting abrasive or corrosive slurry,which is widely used in mineral processing, metallurgy, petroleum, chemical industry, coal mining and other industries. 1.5/1B-AH is heavy-duty slurry pump, suitable for transporting highly abrasive, high-concentration slurry or low-concentration high head slurry.  It can be used in series of multiple stages within the maximum allowable working pressure range of the pump.

5.0
design customization
Inquiry

    oops...!

    no product data.

    Go to homepage
    Write a Review

    Introduction of Pump Model

    icon “1.5” means the inlet diameter is 1.5 inches

    icon “1” means the outlet diameter is 1 inches

    icon “B” means the base type

    icon “AH”means the slurry pump series

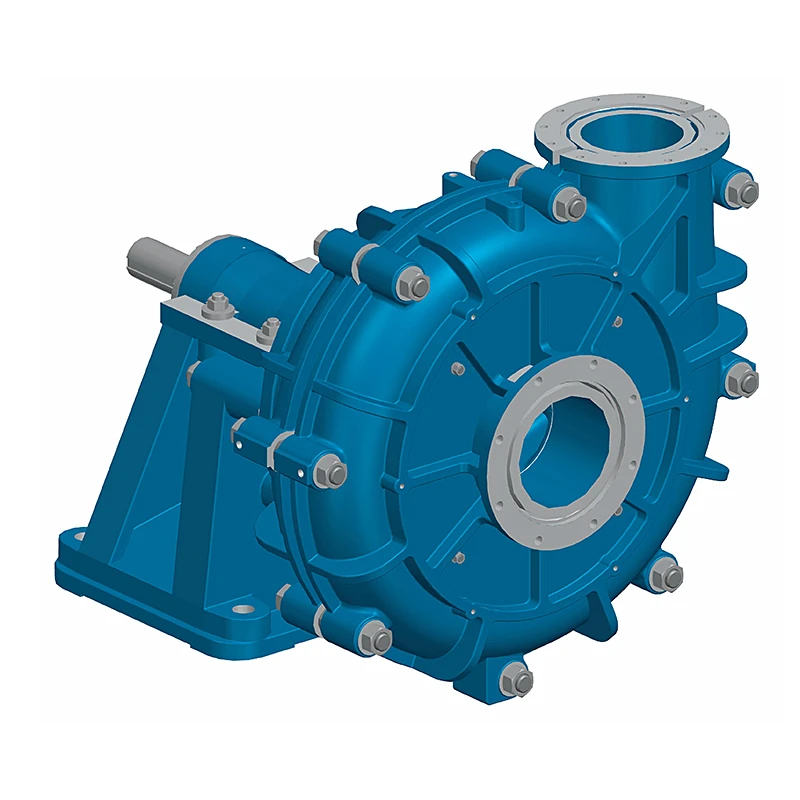

    slurry pump 3D model
    slurry pump 3D model

    Specifications

    AH Series Metal Slurry Pump Specifications

    Pump Model

    S×D(inch)

    Allowable
       Max. Power (kw)

    Material

    Clear Water Performance

    Impeller

    Weight
     (kg)

    Capacity Q

    Head
      H(m)

    Speed
     n(r/min)

    Max.Eff.
       η%

    NPSH
     (m)

    No. of
        Vanes

    Vane Dia.
      (mm)

    Impeller

    m3/h

    l/s

    1.5/1B-AH

    1.5×1

    15

    Metal (A05)

    12.6-28.8

    3.5-8

    6-68

    1200-3800

    40

    2-4

    5

    152

    91

    Structure of 1.5/1B-AH SLURRY PUMP

    slurry pump 3D model
    slurry pump 3D model
    slurry pump 3D model
    slurry pump 3D model

    CONSTRUCTION OF 1.5/1B-AH SLURRY PUMP

    CONSTRUCTION OF 1.5/1B-AH SLURRY PUMP

    Dimension Drawing

    Dimension Drawing
    Specifications
    1.5/1B-AH Slurry Pump Dimension Drawing
    SH 拷贝 (2)
    1.5/1B-AH Slurry Pump Specifications

    Sealing System

    Slurry Pump Gland Seal
    Gland Seal
    Slurry Pump Expeller Seal
    Expeller Seal

    Multiple Driving Models

    Slurry Pump ZVZ Drive
    ZVZ Drive
    Slurry Pump DC Drive
    DC Drive
    Slurry Pump CV Drive
    CV Drive
    Slurry Pump CV Drive
    CV Drive

    Wet-end Parts

    Elastomer Wet-end Components
    High Chrome Wet-end Components
    Slurry Pump Elastomer Wet-end Components
    High Chrome Wet-end Components

    Application

    16/14 Iron Ore Slurry Pump Application
    16/14 Iron Ore Slurry Pump Application
    16/14 Iron Ore Slurry Pump Application
    16/14 Iron Ore Slurry Pump Application
    16-14TU-AH
    16-14TU-AH
    16/14 AH Series Series-connected Slurry Pumps
    16/14 AH Series Series-connected Slurry Pumps
