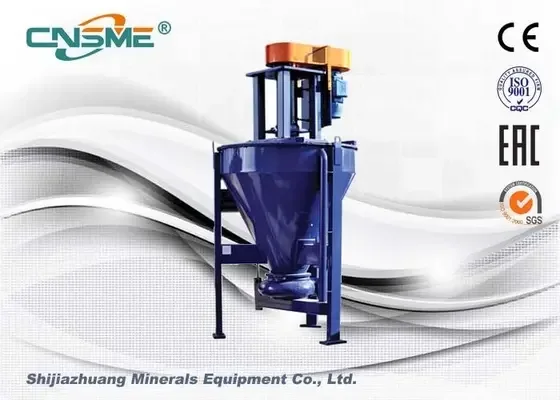

SF Froth Pump is designed for slurry containing froth and pulp. With their limitation of name, they could also be used for general industrial slurry pumping.
This series of pumps can effectively eliminate the foams and bubbles out of the slurry during the operation. Even the feed-in material is not enough, the pump can still work normally, which is especially applied in various of the flotation processes, it is an ideal pump product for conveying foam type slurry.
| Size: | 2 Inch To 8 Inch | Capacity: | 7.6m3/h To 575m3/h |
|---|---|---|---|
| Head: | 5m To 29m | Materials: | High Chrome Alloy, Natural Rubber, Neoprene, Polyurethane |
| High Light: | 2 inch vertical froth pumps,polyurethane lined vertical froth pumps,8 inch tailing slurry pump | ||
SF Froth Pump Features:
1. SF froth pump is suitable for transporting slurry with froth, especially for flotation processing.
2. SF froth pump can eliminate the froth in the running slurry and work normally even if the feeding slurry is not enough.
3. The feeding suction in the tangent line can accelerate slurry transporting and eliminate part of the froth.
4. The belt and pulley are easy to be altered in order to change the speed according to the working condition.
5. Interchangeable wet parts are made of special alloy, rubber or other wear-resistant materials according to slurry properties
SF Froth Pump Structural Drawing:
SF Froth Pump Performance Chart:
SF Froth Pump Performance Data Sheet:
| Model | Power P(KW) | Capacity Q(m³/h) | Head H(m) | Speed n(r/min) | Eff. η% | Inlet dia. (mm) | Outlet dia. (mm) |
| SF2Q | 3-15 | 6-43 | 6-30 | 800-1800 | 45 | 100 | 50 |
| SF3Q | 3-18.5 | 23-78 | 5-28 | 700-1500 | 55 | 150 | 75 |
| SF4R | 5.5-37 | 33-187 | 5-28 | 500-1050 | 55 | 150 | 100 |
| SF6S | 15-75 | 80-393 | 5-25 | 250-680 | 55 | 200 | 150 |
| SF8S | 37-110 | 126-575 | 5-26 | 350-650 | 55 | 250 | 200 |
SF Froth Pump Application:
▶Iron Ore Dressing Plant
▶Copper Concentration Plant
▶Gold Mine Concentration Plant
▶Molybdenum Concentration Plant
▶Potash Fertilizer Plant
▶Other Mineral Processing Plants
▶Other industries
