● Material: Chrome Alloy A05
● Impeller: 5-Vane Closed
● Use: Coal Washery Plant Slurry Pump
● Stage: Single Stage
● Lubrication: Oil
● Speed: Fixed Rotation
● Model: 150ZGB
Introducción:
SME offers pumping solutions for refuse, tailings and high volume concentrates in the mining industry. We also offer equipment sales, complete system designs and high quality engineering.

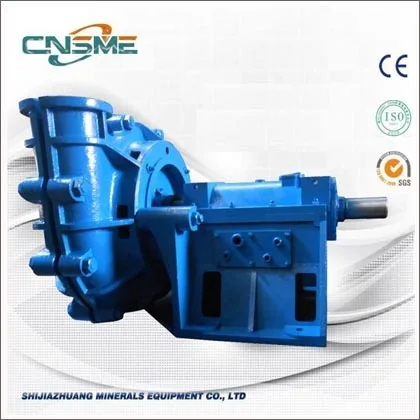

ZGB Series is a high performance, high capacity, high head ones and can be multi-set slurry pumps, widely used for carrying abrasive or corrosive slurry in industrial sectors such as electricity, metallurgy, mine, coal, building material and chemical engineering
SME products include: centrifugal slurry pump and spares, horizontal slurry pump and spares, sumbersible slurry pumps, electric motors and control panels, vertical spindle slurry pumps and spares, dewatering pumps and spares.
Characteristics:
1. High efficiency and low abrasion
2. Can be connected to the multi-step series under the allowable pressure (3.6MPa)
3. The bearings are lubricated with thin oil can work under low temperature by placing the lubrication and cooling system intelligently
Presupuesto:
| Modelo | 150ZGB |
| Capacidad | 100-900m3/h |
| TDH | 60-94m |
| Máx. Allowable Motor Power | 560kw |
| Velocidad | 980r/min or 1480r/min |
| Máx. Eficiencia | 78% |
| Lubrication | Oil |
Construction of ZGB Slurry Pump:
Standard Material of Wet-end Parts: Hi-Chrome Alloy A05
Typical Applications:
Bottom/Fly Ash
Coal Washing
Power Plants
Potash Fertilizer Plant
Iron Ore Dressing Plant
Gold Mine Concentration Plant
Performance Curve:
Projects of ZGB Heavy Duty Slurry Pump:
Etiqueta:
solids handling pump, abrasive slurry pump
