● Material: Chrome Alloy A05
● Impeller: 5-Vane Closed
● Use: Coal Washery Plant Slurry Pump
● Stage: Single Stage
● Lubrication: Oil
● Speed: Fixed Rotation
● Model: 100ZGB
● Weight: 3000kgs
介紹:

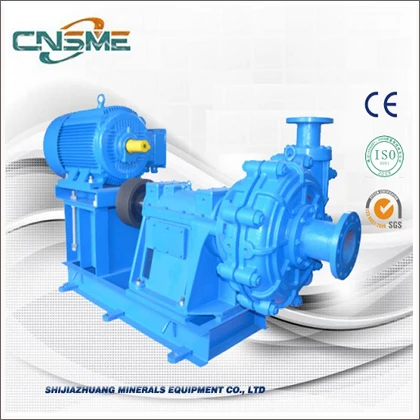

ZGB series slurry pump is a horizontal, single stage, single suction, cantilever, double pump shell, centrifugal slurry pump.
Over-current components can exchange ZGB and ZGBP type slurry pump the same caliber. Dimensions are identical. The transmission part ZGB series slurry pump adopt open standards thin oil lubrication carrier, and is provided with two groups of cooling sys,.
When necessary, cooling water.
Shaft seal type ZGB series slurry pump has two types: expeller seal combined with packing and mechanical seals.
規格:
| 模型 | 100ZGB |
| 容量 | 50-400m3/h |
| TDH | 40-100m |
| 最大限度。 Allowable Motor Power | 300千瓦 |
| 速度 | 980r/min or 1480r/min |
| 最大限度。 效率 | 78% |
| Lubrication | Oil |
Construction of ZGB Slurry Pump:
Standard Material of Wet-end Parts: Hi-Chrome Alloy A05
Typical Applications:
Bottom/Fly Ash
Coal Washing
Power Plants
Potash Fertilizer Plant
Iron Ore Dressing Plant
Gold Mine Concentration Plant
Projects of ZGB Heavy Duty Slurry Pump:
Tag:
solids handling pump, abrasive slurry pump
