Overview

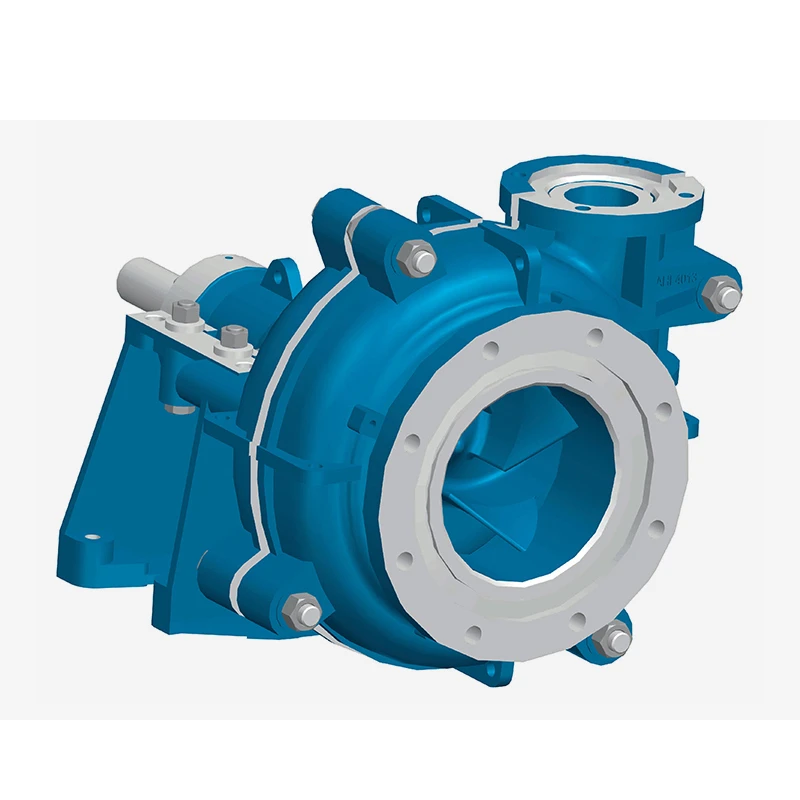

The SHF/SMF/SLF range of froth pumps are designed to handle heavy froth for tough flotation froth duties, featured with a unique inlet and impeller design, this line of horizontal froth pumps is very successful where others fail.
A large oversized inlet with a unique impeller inducer blade handles heavy froth and higher viscosity dense slurries with ease. The CNSME SHF/SMF/SLF series of horizontal froth pumps has proven valuable for very dense slurries where viscosity starts to become a pumping issue for the standard slurry pump
تحديد
Discharge size range: 50mm to 550mm [2’’ to 22’’]
Flowrates to: 4550m3/hr [20,000GPM]
Heads to: 37m [120ft]
Performance Coverage for Quick Selection
الميزات الرئيسية:
Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime
Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs
Large, open internal passages designed to reduce internal velocities, maximize wear life and lower operating costs
Unique impeller design for most difficult froth applications
Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximize wear life
Minimal shaft/impeller overhang reduces shaft deflection and increases packing life
Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the pump, resulting in reliable operation and prolonged bearing life
Standard SH and SL pumps can be converted by replacing cover plate, throatbush and impeller
Typical Applications
Minerals Concentrate
Flotation
Mineral Sands
Fine Tailings
CNSME® is a registered trademark. CNSME® Pumps do not represent a registered trademark of Weir Warman and are not affiliated with Warman® in any way. All names, numbers, symbols and descriptions are for informational purposes only and do not mean that any part or pump listed is a product of Weir pumps.
